Multi function JPT RAYCUS SYNRAD 20W 30W 50W Color CO2/Fiber Laser Marking Machine

Short Description:

This product is a special customized split design CO2 laser marking machine (fiber laser marking machine). This design not only hides all electrical components, but also makes it more beautiful and safer. This split design can meet the size of customers’ different marking products, independently adjust the height, and can also be connected in series with the existing assembly line, simplifying the work process and improving work efficiency.

Product Detail

Product Tags

Feature Of Machine

1. multi functions ,Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, larger workpiece could be marked by our customized electrical XY working table.

2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especailly good for large size seamless splicing image marking.

3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.

4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.

5. No consumables except electricity.

6. Free Maintenance.

7. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install laser marking machine.

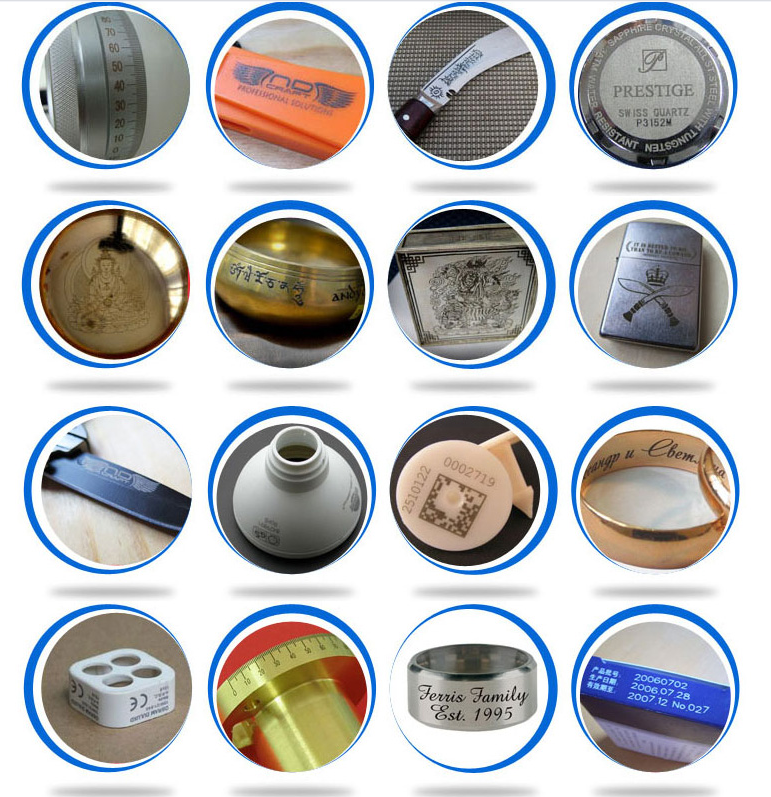

Application Industries:

Mobile phone keypad, plastic translucent keys, electronic components, integrated

circuits (IC), electrical appliances, communication products, sanitary ware, tools,

accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking

utensils, stainless steel products and other industries.

Application Materials:

Metals (including rare metals), engineering plastic, electroplating material, coating

material, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel

titanium, cooper and other materials.

Main Configuration

Laser Type CO2/Fiber Laser Marking Machine
Model UC-M330 / UF-M330
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 50W/60W/100W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/second
Repeated Precision ±0.003mm
Working voltage 220V / or 110V (+-10%)
Cooling Mode Air Cooling/water cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C

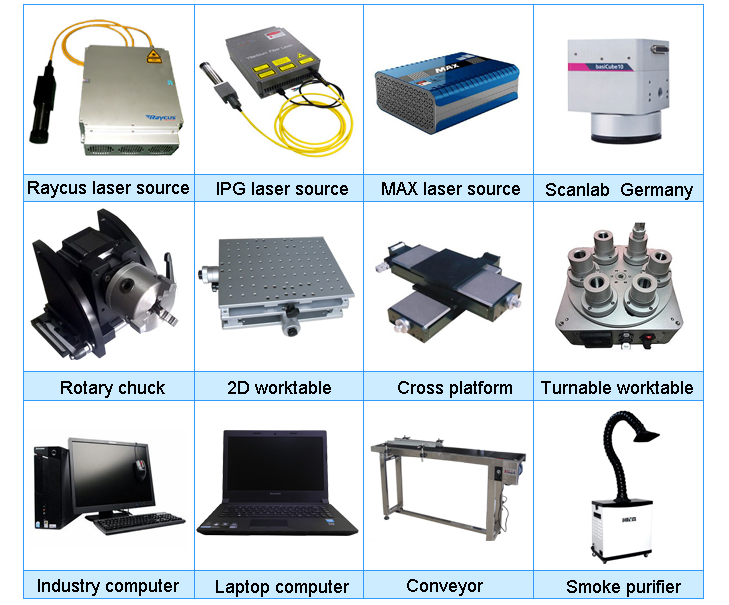

Optional parts Rotary Device, Lift platform, other customized Automation
Warranty 2 year
Gross Weight 85kg
Packing Dimension 950*650*850mm
Machine Dimension 800*420*700mm
Package Plywood

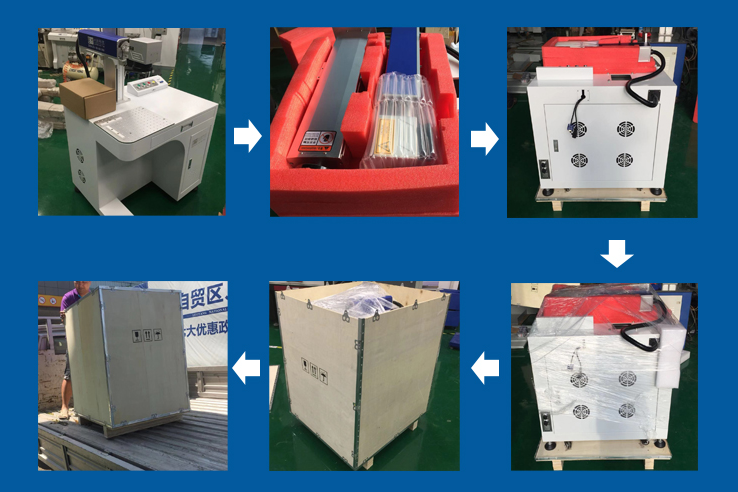

Packing and Service


1.First innermost layer is EPE pearl cotton film package.
2.Then middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.At last packing into wooden box.



---Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking

Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.

---After-sales Services

1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.




Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:

1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.

2) Your materials.


Q2. If we don't know how to use the machine, can you teach us?

A 2: Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.


Q3. How long is the delivery time?

A 3: For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.


Q4. Quality Control:

A 4: The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.


Q5. Do you arrange shipment for the machines?

A 5: Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
