portable type 20W/30W/50W/100W fiber laser marking machine

Short Description:

Fiber laser marking machine can do fast and permanent mark of text, series numbers, QR code, bar code, pictures, etc. on all kinds of metal material and part nonmetal material. With a small volumn and wide application, fiber laser marking machine are widely use in both industry and DIY customize crafts industry.

Send email to us

Product Detail

Product Tags

Feature Of Machine

1. Adopt optical fiber solid laser, high beam quality, long life, save electricity and energy saving, lower cost.

2. Adopts advanced computer control system, the software function is very powerful.

3. The software can be compatible with CorelDraw, AutoCAD, Photoshop etc..

4. Suitable material: metal, metal oxide material, laser marking EP materials .ABS plastic etc, printing ink and paint process.

5.Application industries: Metal parts manufacturer, Auto spare parts, Digital products parts, communication products, sanitary ware, electronics, jewelry, glasses and watches, medical equipment and other industries.

Application

All metallic:Jewelry,gold, Curve metal,silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.

Some Non-metallic: non-metallic coating materials, industrial plastics, pen,hard plastics, barcode,sunglass,rubber, ceramics,wood, paper, plexiglass, acrylic resin, unsaturated polyester resin material

Applicable Industries:

Computer keyboards; precision instruments,auto parts,medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds,data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, wire and cable , Industrial bearings, building materials,Food packaging; health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo,etc

Main Configuration

Laser Type	Fiber Laser Marking Machine
Model	UF-M220
Working area	110110/150150/200200/300300(mm)
Laser power	10W/20W/30W/50W/100W
Laser wavelength	1060nm
Beam quality	m²<1.5
Application	metal and partial nonmetal
Marking Speed	7000mm/second
Repeated Precision	±0.003mm
Working voltage	220V / or 110V (+-10%)
Cooling Mode	Air Cooling
Supported graphic formats	AI，BMP，DST，DWG，DXF，DXP，LAS，PLT
Controlling software	EZCAD
Working temperature	15°C-45°C
Optional parts	Rotary Device, Lift platform, other customized Automation
Warranty	2 year
Gross Weight	45kg
Package	Plywood case

Packing and Service:

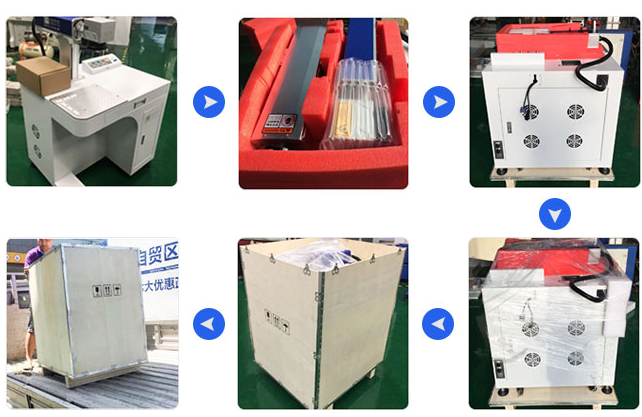

Packing:

1.First innermost layer is EPE pearl cotton film package.
2.Then middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.At last packing into wooden box.

Service

Pre-sale service

* Free sample marking

For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.

*Customized machine design

According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.

After-sale Service

*Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.

* If you have problems while using, 24hours online professional advice available.

*Lifetime software free upgrades.

* Fiber laser source we warranty for 3 years ,the other parts warranty for 2 years.

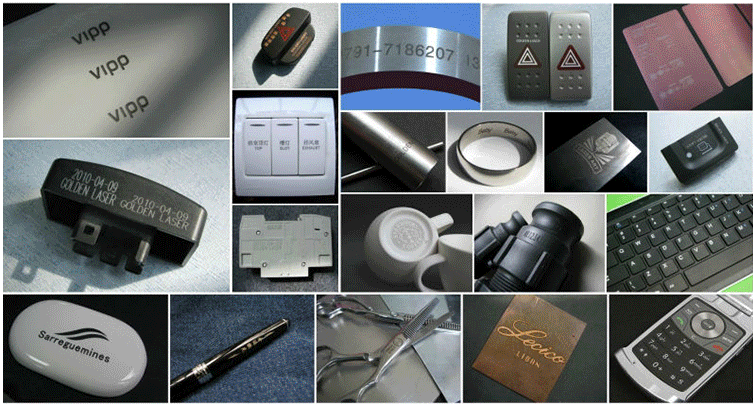

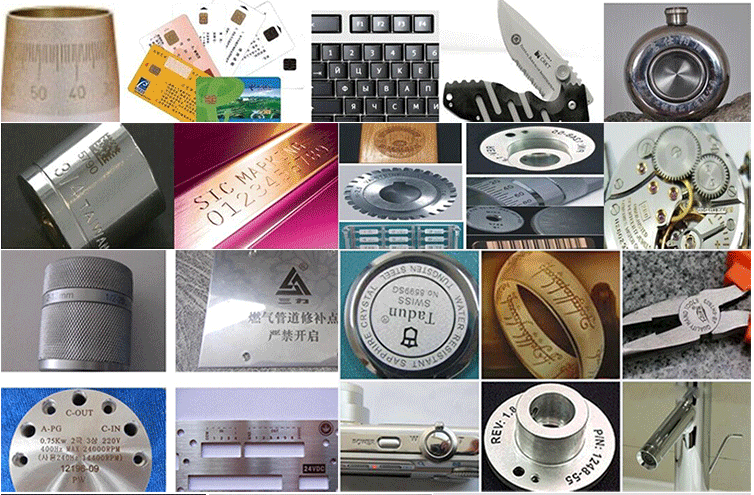

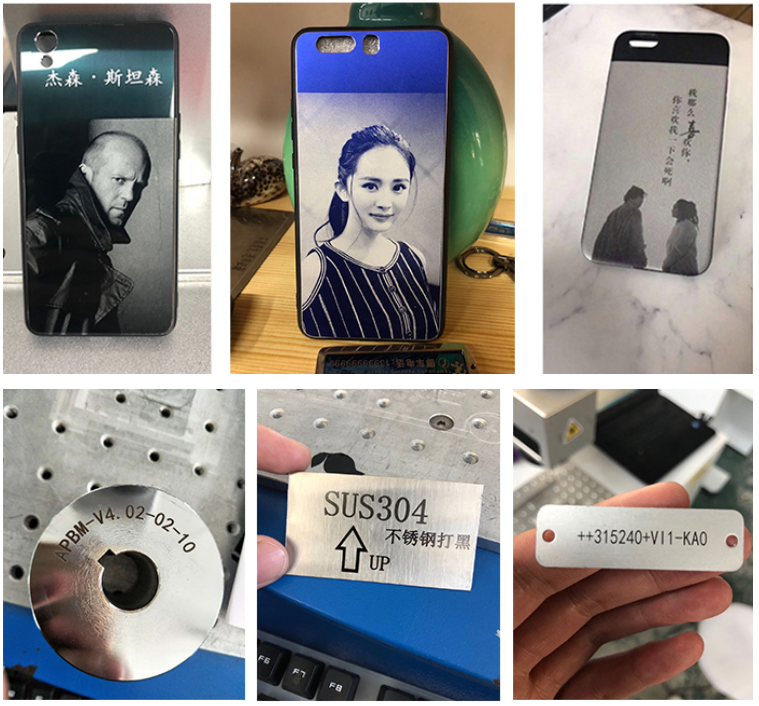

Samples

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?

A1.We will help you choose the suitable machine and share you our best solution;

You can share us what kind of material you're gonna mark/ engrave on.

Q 2: How many years warranty can I get?

A 2: We provide 3 years warranty for Fiber Laser Machine,Provide 1 year warranty for Other cnc and laser machine such as wood cnc router, stone cnc router, foam cutting machine, flatbed cutter etc.

Q 3: When I got this machine, but I don’t know how to use it. What should I do?

A 3:We can send operation video and manual for the machine. Our engineer will do training online.

If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q4: If some problems happen to this machine, what should I do?

A 4:We provide a full 3year machine warranty.

Any problems happened under warranty, components will be provided for replacement or repairement free of charge.

If over the warranty, we still provide excellent service.
