marble granite engraving machine 1325 stone cnc router sculpture machine stone cnc marble Engraving Machine

Short Description:

High Z feeding height stone CNC Router Machine mainly used for carving on stone and other hard material such as ceramic, marble, granite, tombstone, aluminium composite panel etc. This model of stone cnc machine build with high Z height which could work at the very thickness stone or foam etc. heavy duty structure as well as powerful stepper motors. Machine control system is pretty much the same as woodworking CNC Router ,it could be DSP, NC Studio, Mach3 etc. It is widely used for the stone processing business such as tombstone carving, building decoration, tombstone carving, 3D artwork carving .etc Meanwhile, our Stone Engraving CNC Router could add the 4 axis rotary clamps for the stone column carving work.

Send email to us

Product Detail

Product Tags

Feature Of Machine

1.Heavy duty whole steel welded structure ,could load heavy stone on the table.

2. T-Slot table with universal beam steel ,prolong clamp device to hold all type of stone still.

3. Loading wheel in front of table ,easy to load, stainless steel water tanks keep all the water recycle inside.

4. DSP portable DSP controller or Computer based controller, friendly to all type of CAD/CAM software which could create G-code.

5. High powerful 5.5-7.5kw water cooling spindle with constant torque, Water cooling device to protect cutting bits.

6. All axis with covers to protect the rack and pinion from dust and water splash.

Application

Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.

Main Configuration

Model	US-1325H
Working size	13002500600mm
X, Y, Z axis Traveling positioning accuracy	±0.03
X, Y, Z axis Reposition accuracy	±0.02mm
Transmission system	X, Y axis HIWIN Linear Rail + Helical Gear Rack
Transmission system	Z axis HIWN Linear Rail + TBI ballscrew
Driving system	Stepper motor + Leadshine drivers
Max working speed	18000mm/min
Spindle	5.5KW water cooling spindle
Spindle revolving speed	0-24000rpm
Inverter	Folinn
Command language	G code
Control system	DSP A11
Support Software	Type3/Artcam/Artcut/Ucancam etc
Running environment temperature	0-45 centigrade
Relative humidity	30%-75%
Working voltage	380V, 50/60Hz
Weight	1500kg
Machine size	330021501850mm

Packing and Service

Packing:

1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

*More than 95% of the timely response rate, timely response to customer questions

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

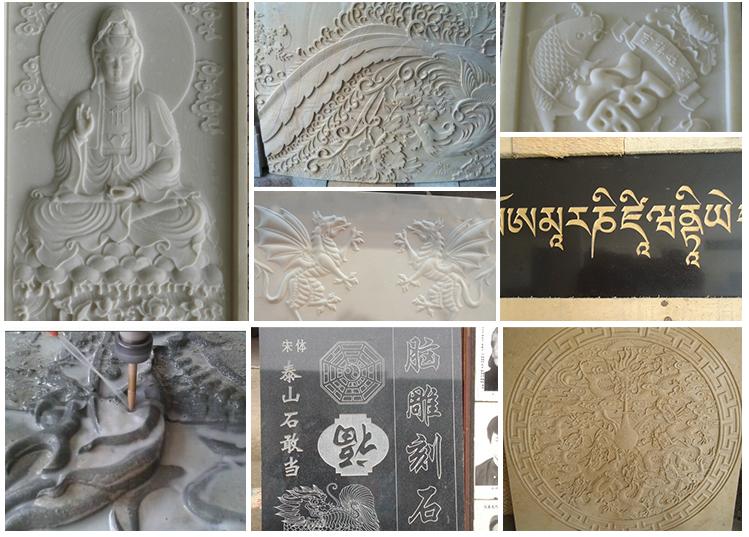

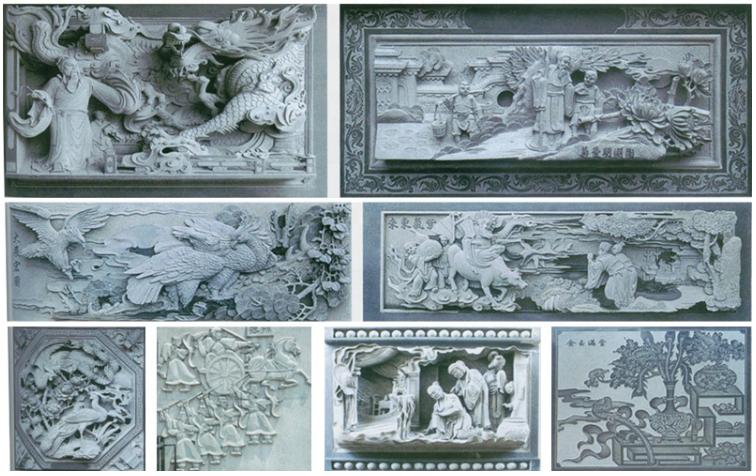

Samples

FAQ

Q1. How can I get the machine ,how to order ?

After we confirm all details ,then You can pay 30% deposit according the Proforma invoice, then we will start to make production. Once the machine is ready , we will send pictures and video to you, and then you can finish the balance payment. Finally, we will pack machine and arrange delivery for you as soon as possible.

Q2. How long time will need for my machine to delivery?

For standard machines, it would be about 7-10 days. For customized machines according to your specific requirements, it would be about 15-20 working days.

Q3. If some problems happened during warranty period, how you do service?

We will supply free parts in machine warranty period if machine have some problem. While we

also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.

Q4. How to use the machine after receving the machine

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we send user manuals and CD to you before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.
