mixed co2 laser cutting machine for Metal Carbon Steel Pipe and nonmetal wood acrylic plastic 150w 180w 300w 500w

Short Description:

This type machine is a kind of mixed laser cutting machine with Co2 laser tube,it is used to cut thin Metal sheet , and nonmetal such as acrylic, PVC, rubber sheet, plastic, wood, bamboo,  leather, cloth, double-color board etc. so ,it is one cost-effective model ,not only can do working well ,but also can saving cost.


Product Detail

Product Tags

Feature Of Machine

1) multi functions ,suitable for metal and non-metal, such as stainless steel, carbon steel, acrylic, MDF, plastic, wood

2) Machine precision : Adopt YAKO stepper motor with PMI Linear Rail transmission greatly improve the response speed & cutting precision of equipment, prolong the service life of the product.

3) The constant light path system: this machine adopts the constant light path system, for the first time realized the full width and high precision cutting.

4)Stronger structure,easy operation ,stable laser device and low maintenance cost.

5) almost Zero maintenance

Application

Ⅰ.Applicable materials:thin metal sheet and non-metal materials: Acrylic, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials,etc.

Ⅱ. Applicable industries:

1,Advertising industry:

Double-colored board carving,Organic glass carving and cutting, label carving, crystal cup carving, Warranty signed carving.

2,Carved gifts and crafts industry:

Wood, Bamboo, Ivory, Bone, Leather,  paper.

3,Packing and printing industry:

Rubbery board, Plastic board, Double-layered board, Model cutting board.

4,Leather clothing industry:

Complex characters and pattern carving , Cutting on hypoderm, Synthetic leather ,Man-made leather , Cloth .

5, Architectural model industry:

ABS board cutting, Model carving.

6,Production totem industry:

Appliance signs, Anti-fake commodities marking.

Main Configuration

Model UC-1390M
Worktable  blade
Working area 1300*900mm
Laser Power 130W/150W/180W/300W
Engraving Speed 500mm/s Max
Engraving Depth 5mm
Cutting Speed 60mm/s
Cutting Depth (Acrylic) 0-20mm (acrylic)
Up and down work table Ec Up and down 550mm adjustable
Minimum Shaping Character 1 X 1mm
Resolution Ratio 0.0254mm (1000dpi)
Power Supply 220V(or110V)+/-10% 50Hz
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45℃
Operating Humidity 35-70℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System Windows 98/ME/2000/XP/VISTA/Windows 7/8
Software Ruda/AWC
Engraving on Curve Surfaces(Yes/No) No
Control Configuration DSP
Water Cooling(Yes/No) Yes
Maximum Height Of Materials To Engrave(mm) 120mm
Laser Tube Sealed CO2 glass laser tube
Machine Dimension 1840x1400x1030(mm)
Packing Dimension 2040×1600×1320mm
Gross Weight 480kg

Packing and Service

Packing:

1.First innermost layer is EPE pearl cotton film package.
2.Then middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.At last packing into wooden box.

cvjcg

Service

* Two years warranty,during warranty can be provide parts for free.

* can help customer do Sample testing support.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

Main Reference pictures:

xvsg1

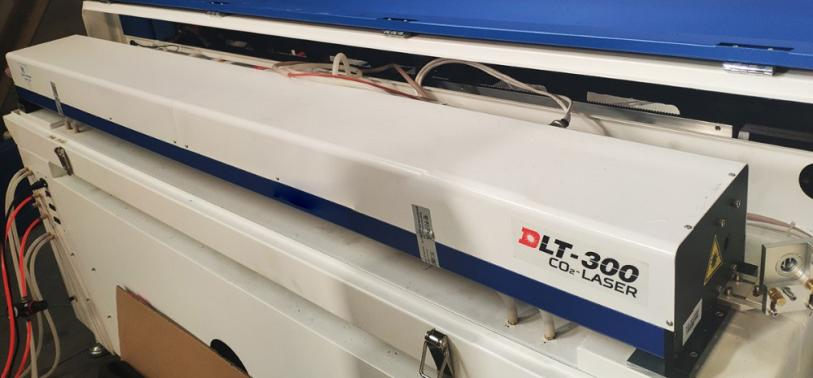

1) Powerful Mixed laser tube:150w/180w/220w/300w

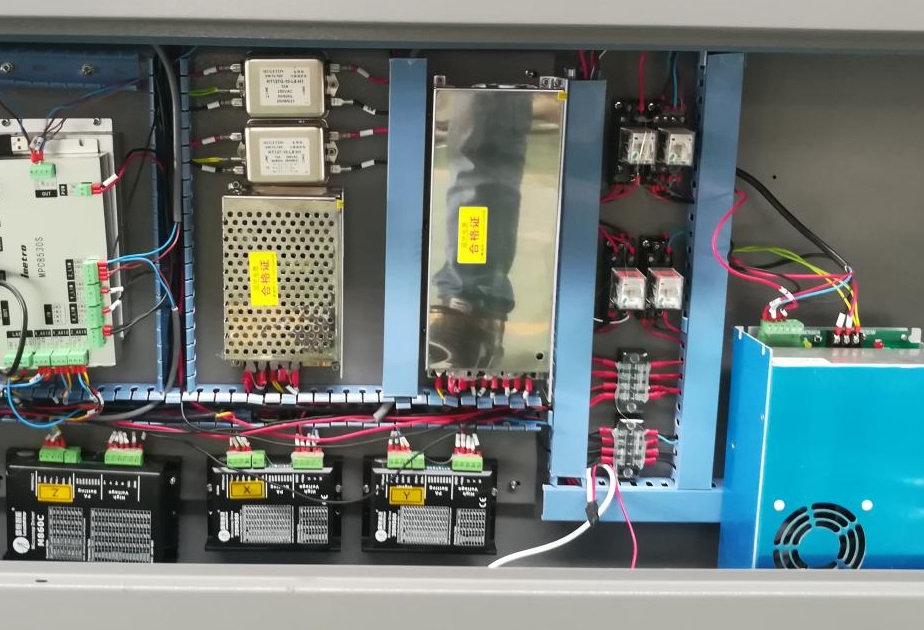

2) Main electronic component in control box

xghdf2
xhxdfgh3

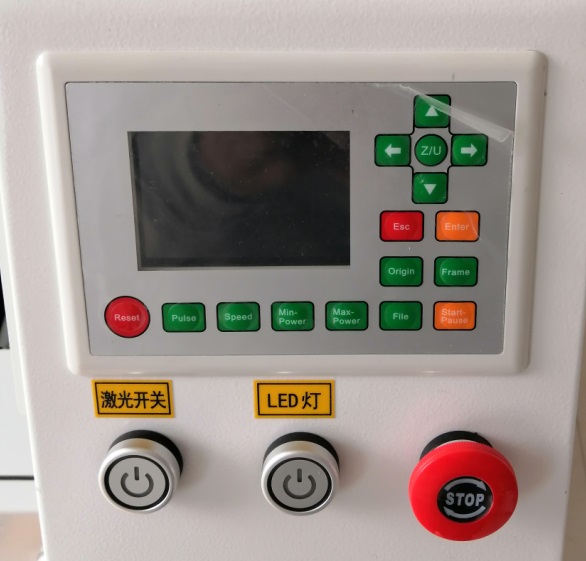

3) Rdcam control system

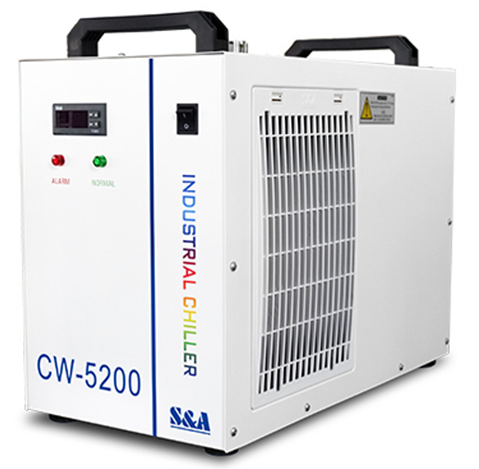

4) Cooling system   CW-5200 water chiller

dfgdr4
xhg5

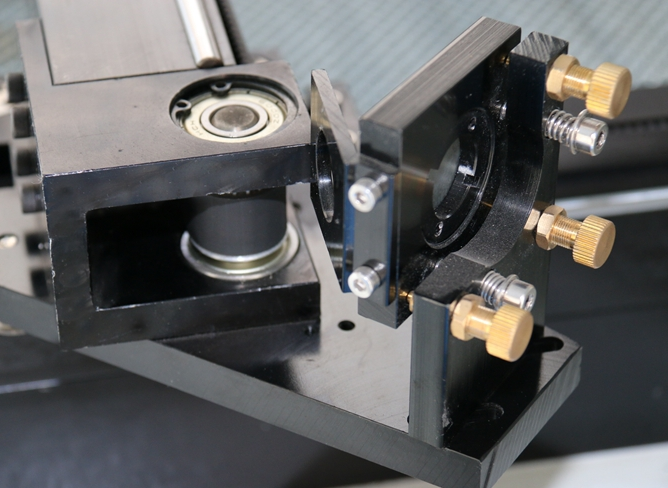

 5)Reflector and line

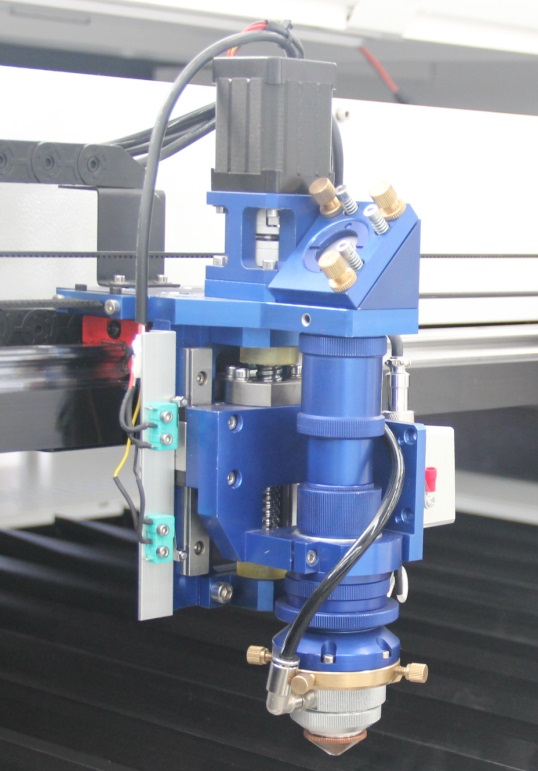

6)laser head

xcfhbxc6
cjhfgh7

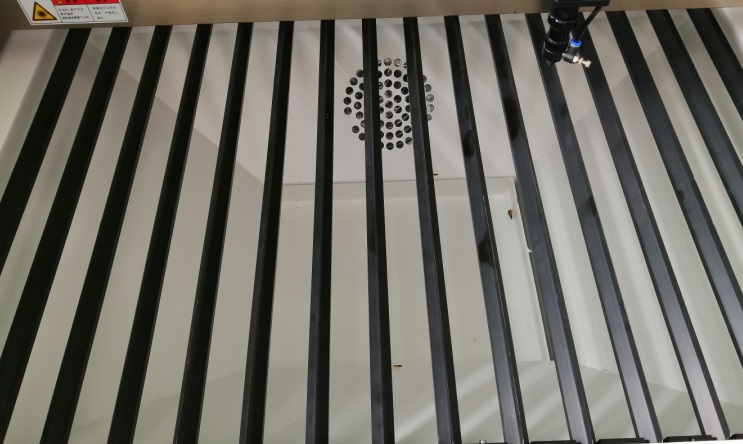

7) Blade table

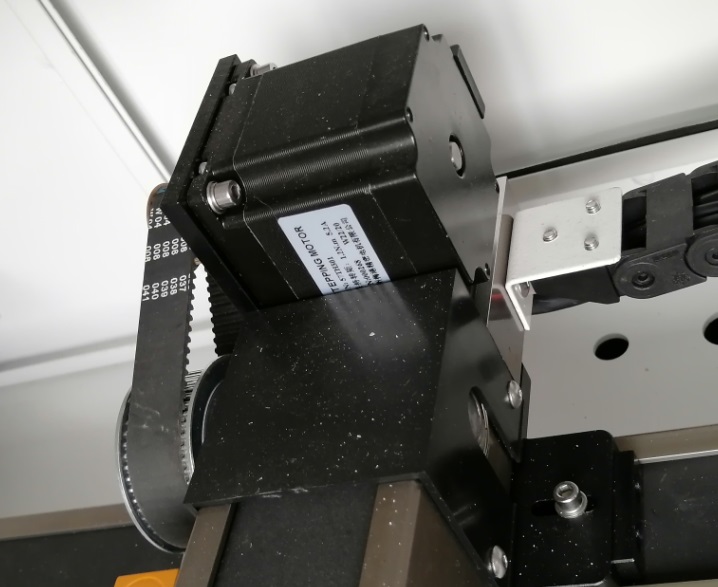

8)High accuracy drivers and stepper motors

hcjg8
chjkg9

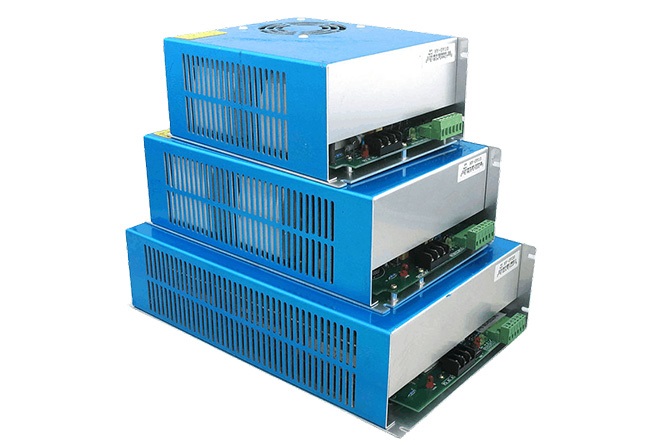

9)high powerful laser source

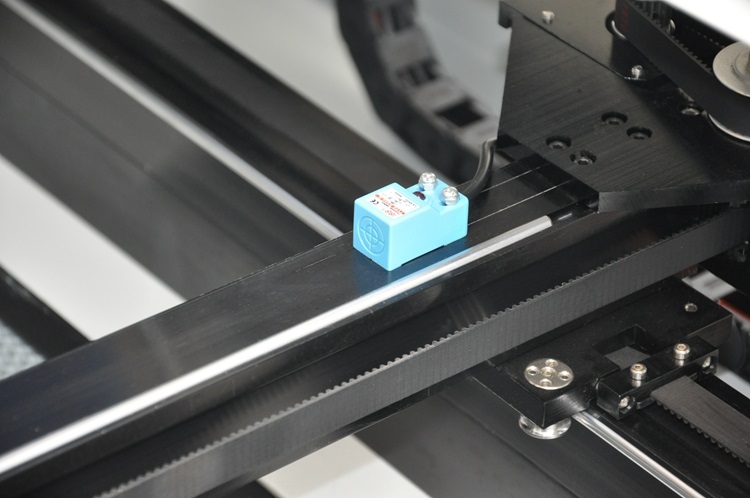

10)high accuracy Linear guide rail

xghdf10
fdhfg1

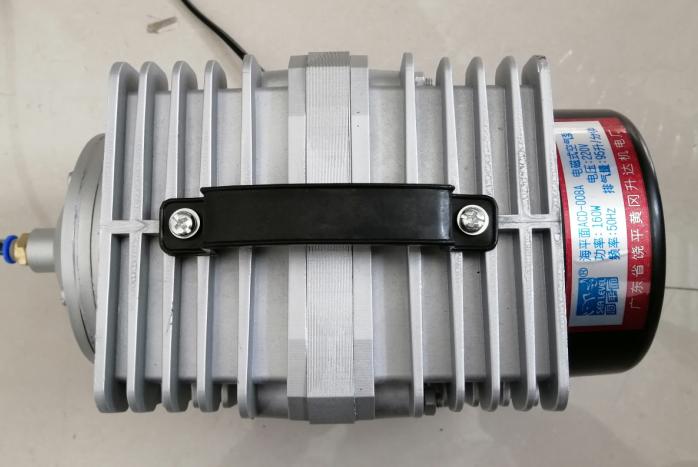

11) Air pump

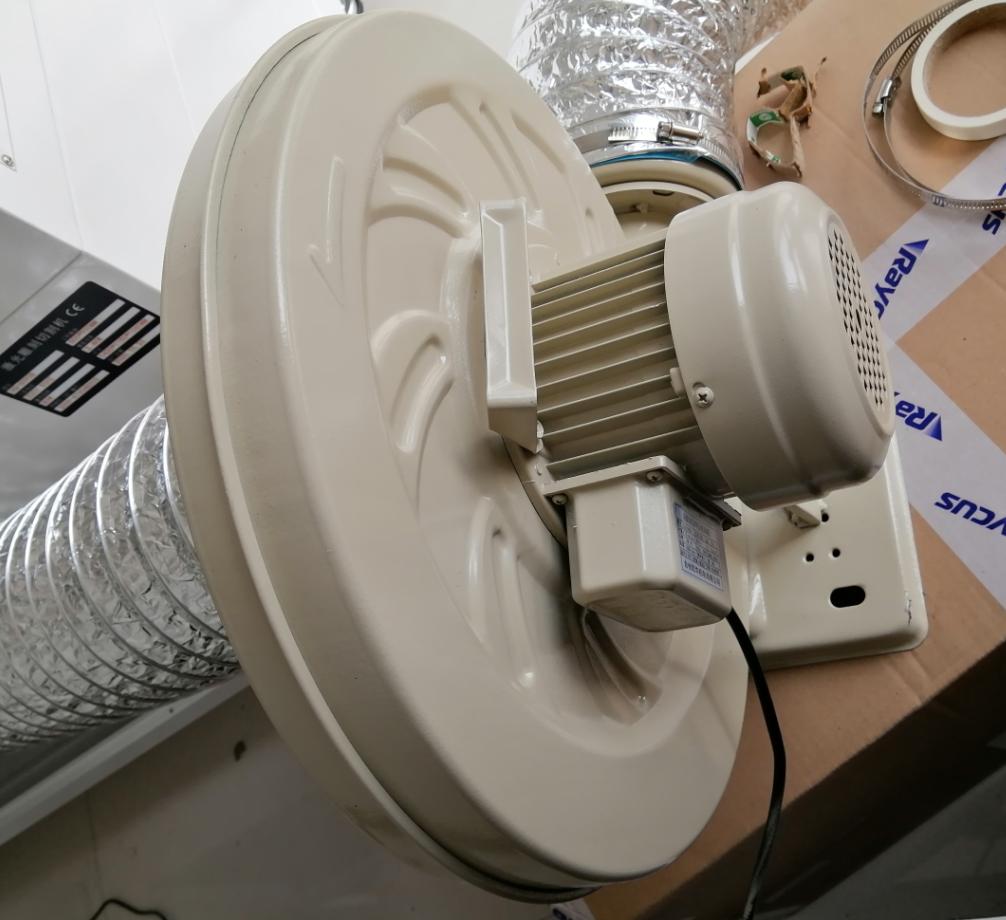

12)550W exhaust fan, removes smoke and dust, protects optical parts and the users

dfhzshf12
dgsd13

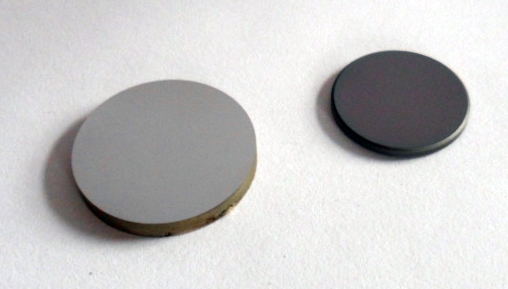

13)Imported lens and mirrors

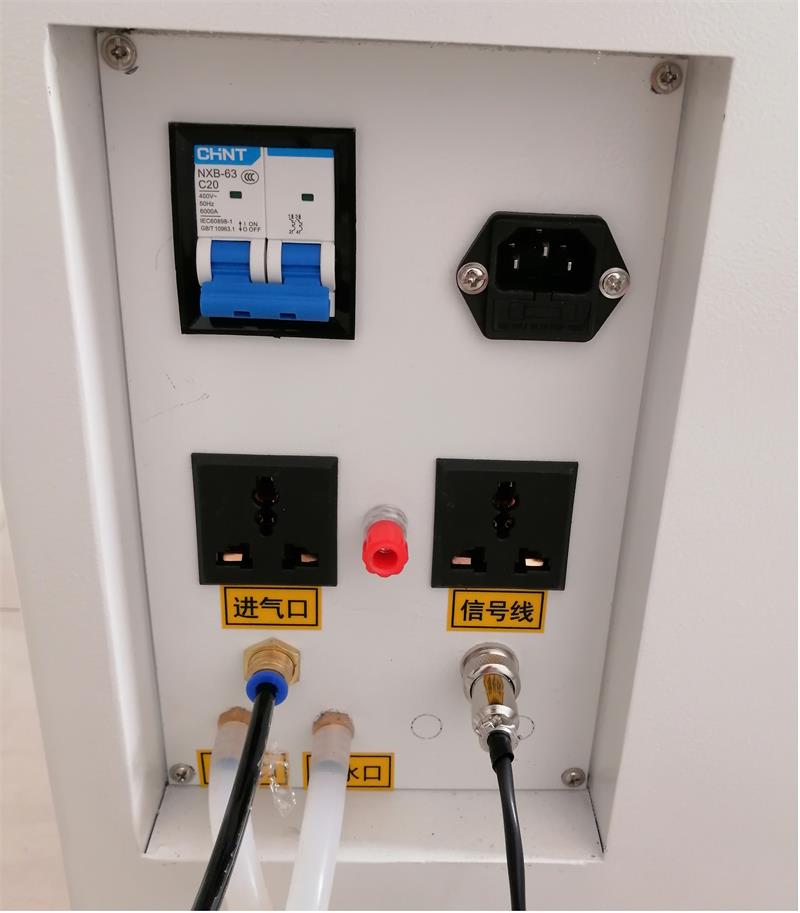

14)out side plug and power switch

zdfgsd14
drghser15

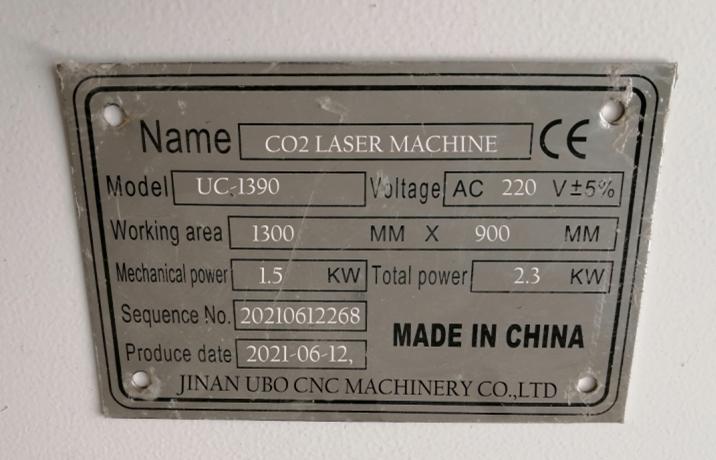

15)Name plate

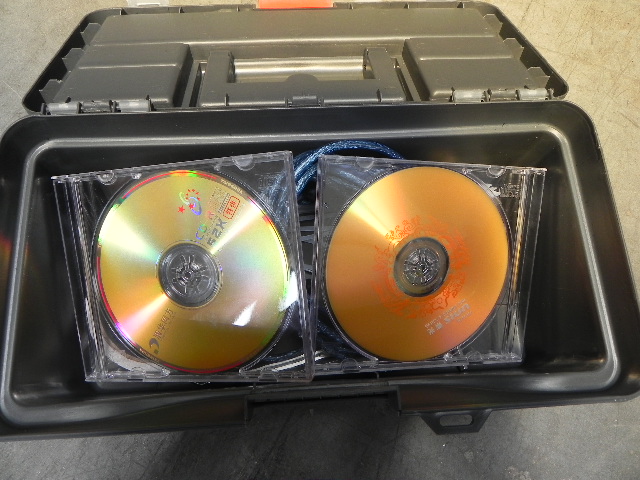

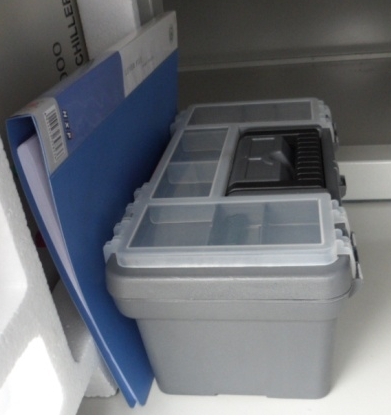

16) Tool box

fgxzf16
dxfhsx17

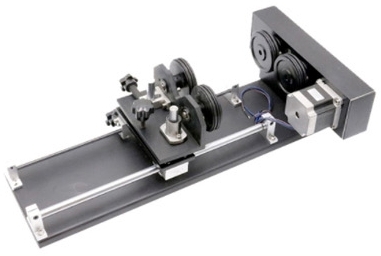

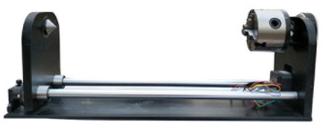

Optional :rotary device



xghxs18
zgfd19

Samples

Metal materials:

xcvz20

Non-Metal materials:

xhfgh

FAQ

Q 1. after you shipping ,how can I get the machine?

A: we will send you Original documents. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance and B/L.then you take these documents can get your machine.

Q: Payment terms?

A:/TT/West Union/Payple/LC/Cash and so on.

Q: I don’t know how to use after i receive Or i have problem during use, how to do?

A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.

Q: I don’t know which one is suitable for me ?

A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.

Q: If we need Lingxiu technician to train us after order,how to charge?

A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s
business travelling ticket / room and board/ 100-130 USD per day.
