Auto focus double heads 1390 co2 laser cutting Engraving Machine

Short Description:

Double heads and double laser tubes can work at the same time to improve work efficiency.

The table can be raised and lowered, suitable for processing materials of different thicknesses.

Specially equipped with red light positioning and auto-focusing functions, it can understand the working area in real time and automatically realize the focus of the light source, reduce errors, improve the processing progress, and increase the yield.


Product Detail

Product Tags

Feature Of Machine

1. Transmission: Adopt YAKO stepper motor with PMI Linear Rail transmission greatly improve the response speed & cutting precision of equipment, extend the time of using.

2. Constant light system :The machine uses the constant light,achieving high precision cutting of the whole area.

3. High precision and stability: with precision Japan ONK belt & China Taiwan PMI Linear Rail transmission mechanism and optimized

the Ruida RDC 6445G system controller, it can meet the precision parts processing ,also can work for long hours.

4. Adopt RECI / Yongli sealed CO2 glass laser tube, main consumable items are electric energy, water cooling, auxiliary gas and laser light.

5. Stronger structure,easy operation ,stable laser device and low maintenance cost.

Application

Applicable Industry:

1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.

Applicable Material:

Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo, Plexiglas, paper, leather, marble, ceramics , etc

Main Configuration

Model

UC-1390D

Working  Size

1300mm *900mm

Laser Tube

Sealed CO2 glass Tube

Working Table

Blade platform

Laser Power

80W+150W

Cutting Speed

0-60 mm/s

Engraving Speed

0-500mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Support Files

BMP,HPGL,PLT,DST and AI

Laser head

Double laser head

Software

Rd works

Computer system

Windows XP/win7/ win8/win10

Motor

Stepper Motor

Power Voltage

AC 110 or 220V±10%, 50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45℃(temperature)      5-95%(humidity)

Z-Axis Movement

Motor control up and down, (0-100mm adjustable)

Position system

Red-light pointer

Cooling way

Water cooling and protection system

Gross Weight

600KG

Package

Standard plywood case for export

Warranty

All life free tech support, two year warranty, except consumables

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable



Optional parts

Spare Focus lens

Spare Reflecting mirror

Spare Rotary for cylinder materials

Industrial Water Chiller

Packing and Service

Packing:

1.First innermost layer is EPE pearl cotton film package.
2.Then middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.At last packing into wooden box.

cvjcg

Service

* Two years warranty,during warranty can be provide parts for free.

* can help customer do Sample testing support.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

Main Reference pictures:

chfcg1

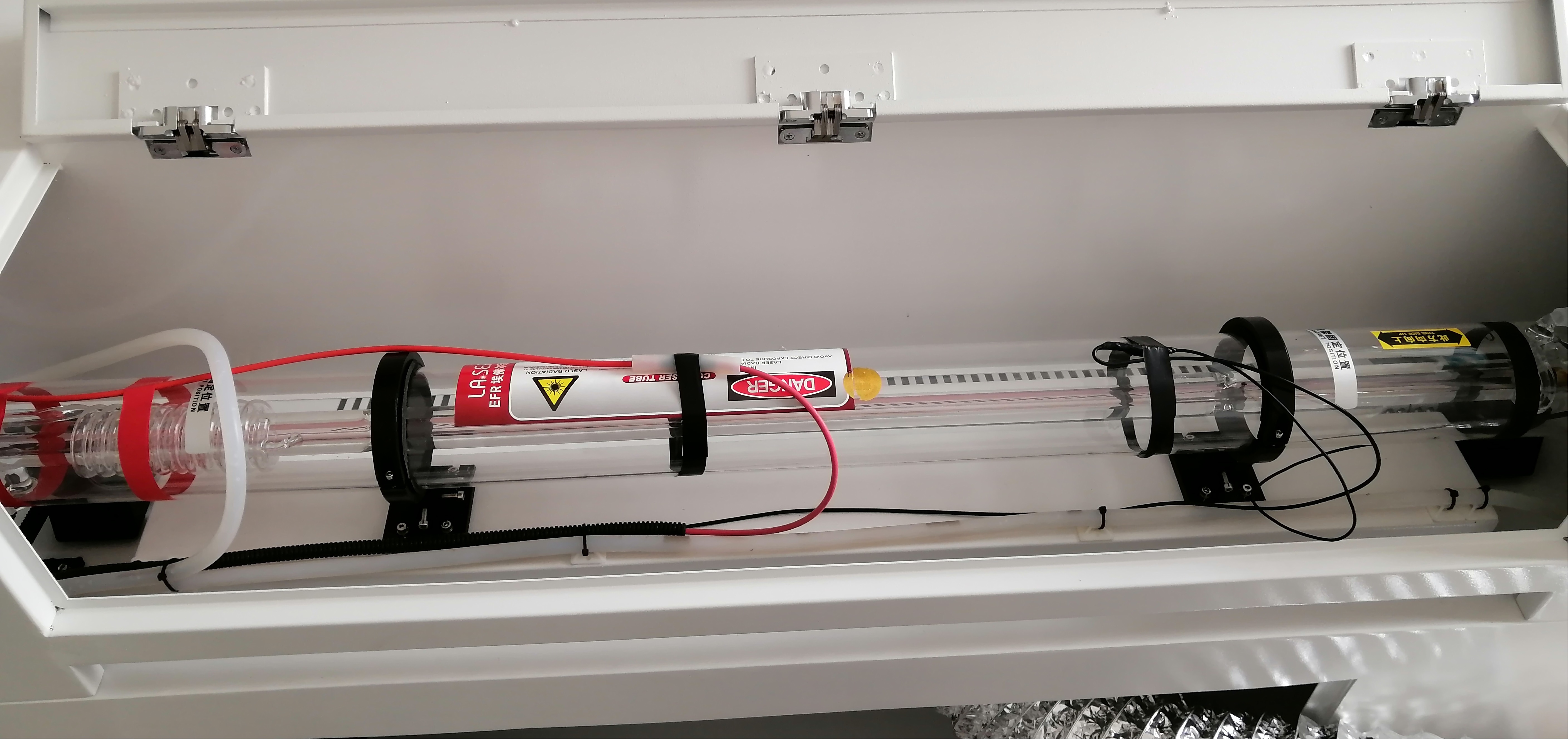

1) Powerful laser tube

2) Main electronic component in control box

xghdf2
xhxdfgh3

3) Rdcam control system

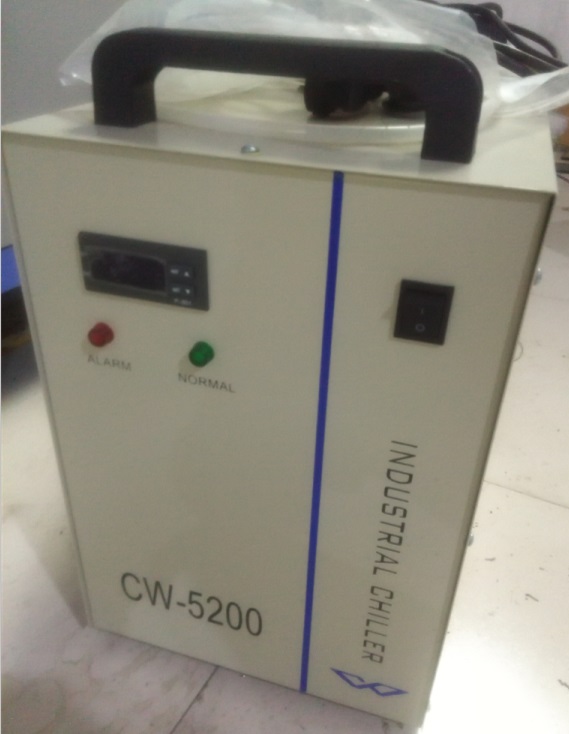

4) Cooling system   CW-5200 water chiller

xhgf4
5axis Cnc Bridge Saw 4 Axis Stone Cutting Polishing Carving Slab Machinery For Marble Granite Countertops And Sink

 5)Reflector and line

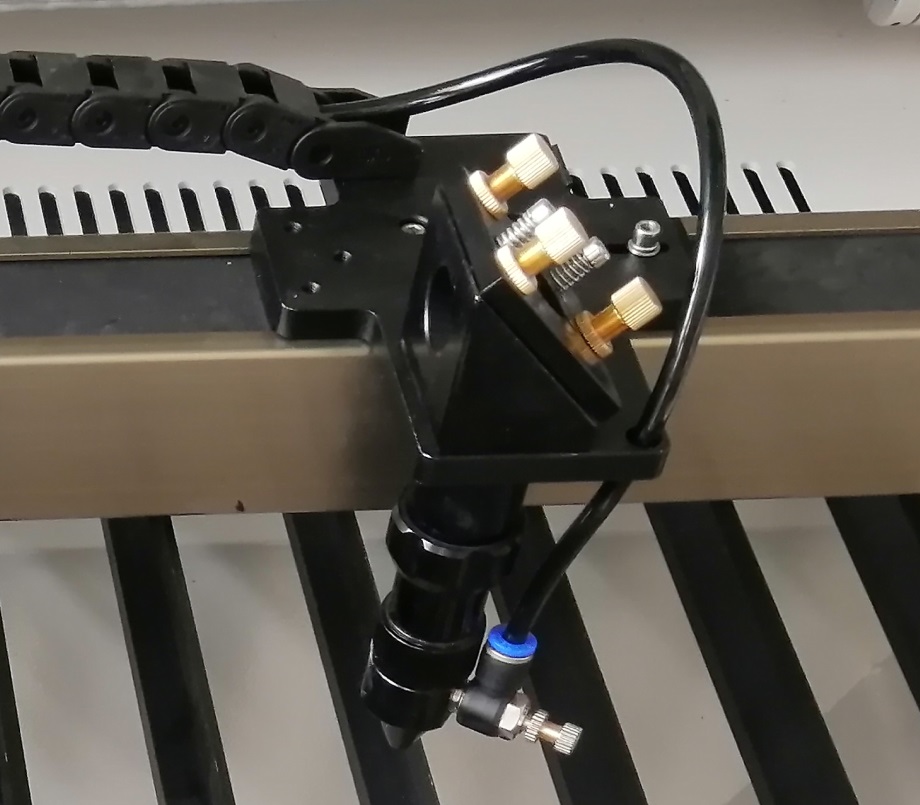

6)laser head

cghfcgjh6
cjhfgh7

7) Blade table

8)High accuracy drivers and stepper motors

hcjg8
chjkg9

9)high powerful laser source

10)high accuracy Linear guide rail

xghdf10
fdhfg1

11) Air pump

12)550W exhaust fan, removes smoke and dust, protects optical parts and the users

dfhzshf12
dgsd13

13)Imported lens and mirrors

14)out side plug and power switch

zdfgsd14
drghser15

15)Name plate

16) Tool box

fgxzf16
dxfhsx17

Optional :

xghxs18
zgfd19

Samples

gjndjg
xhfgh

FAQ

Q 1. How many days can I expect the machine?

A 1: For fiber laser marking machine, if with standard device, its ready to ship.

Other kind of cnc wood machine and laser

machines delivery time is about 20-30 days according to quantity and special device request

Q 2: How many years warranty can I get?

A 2: We provide 3 years warranty for Fiber Laser Machine,Provide 1 year warranty for Other cnc and laser machine such as wood cnc router, stone cnc router, foam cutting machine, flatbed cutter etc.

Q 3: How about Training and after sale service?

A 3: WE have operation and installation video for woodworking machine, metal fiber laser marking machine, foam machine, stone machine,co2 laser cutting machine etc. WE provide 24 online support for software operation, problem setting etc.

Q 4: Whats will be transportation way for the machines?

A 4: for small machines such as fiber laser marking machine, handheld laser welding machine, 3030 desktop cnc router, we can ship it through air, only take 5-7 days to arrive customer's place. For big machines such as fiber laser cutting machine, flatbed cutting machine, hot wire foam cutter, atc cnc router, we will use sea transportation.

Q 5: What will be the package for cnc and laser machine?

A 5: For LCL shipment based on buy 1 set or 2 set, we will use fumigation-free plywood case. For mass purchase such as 6-20 sets panel saw, 6-9 sets 1325 cnc router,we will use film pearl cotton package, and ship by 40'HQ container.
