1325 3d Woodworking Cnc Router 3d Engraving Machine Carving Machine Acrylic Cutting Sign

Short Description:

This is a new design and high-efficiency numerical control equipment, which can not only absorb panels for door panel carving, hollow carving, character carving, but also cut various non-metallic panels, such as MDF, acrylic, two-color panels, solid wood panels, etc. Vacuum adsorption can not only improve work efficiency, but also effectively protect tools.

Send email to us

Product Detail

Product Tags

Feature Of Machine

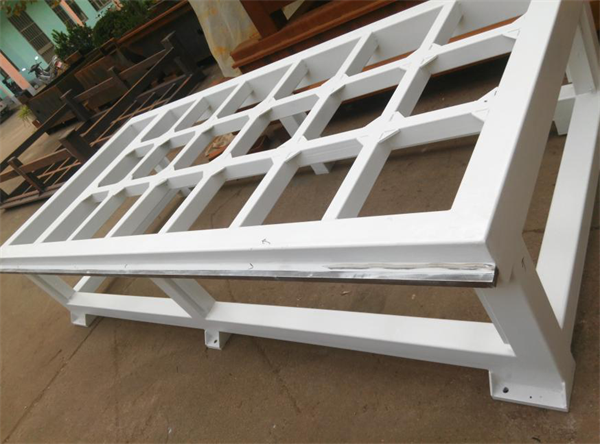

1.The metal cnc router machines’ body is strong, rigid, high precision, reliable and durable.
2). The 3D woodworking machine with auto tool changer, with vacuum table and powerful vacuum pump, allows you to hold the work-piece on the surface of the table automatically, increases working efficiency.

3). Low noise during spindle operation, fine working environment.

4). Equipped with High-quality accessories, allows the machine to work 24 hours a day continuously.

5). Easy to learn and operate, we will offer special educational video and other educational materials in English.

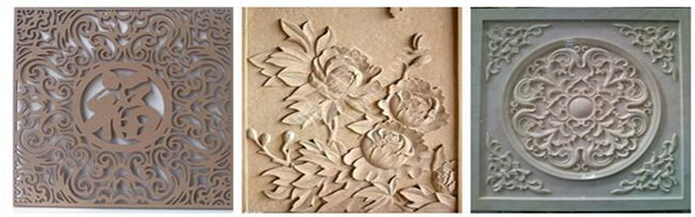

Application

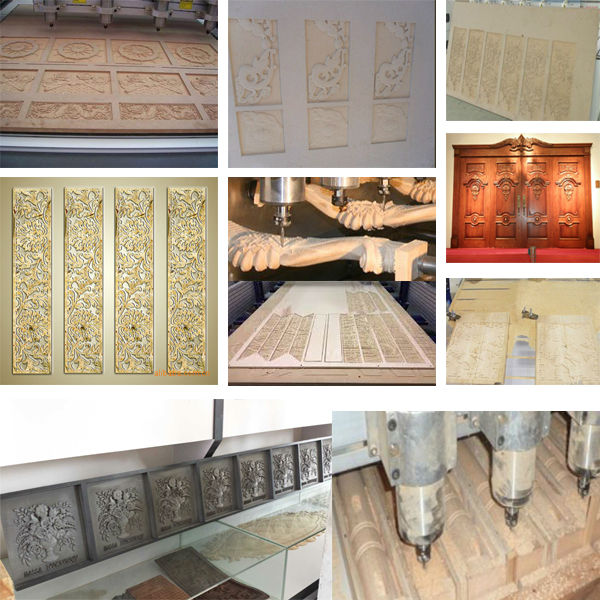

Wood working: Solid wave board process, door of cabinet, wooden door,artistic wooden door, no-paint door, avoid wind, process of the artistic window, shoes cleaning machine, the cabinet of the playing machine and the board, mahjong table, computer table and the assistant process of the household effect
Advertising: Advertising board, Label design, Acrylic cutting, model, of the multi material decoration products.
Other field: It can engrave many image, engrossment, It is widely used in artistic industry.

Main Configuration

Descriptions	Parameters
Modle	UW-1325L
Working area	1300x2500x200mm
Machine size	2000x3100mmx1700mm
Guide	Linear 20 square/Taiwan

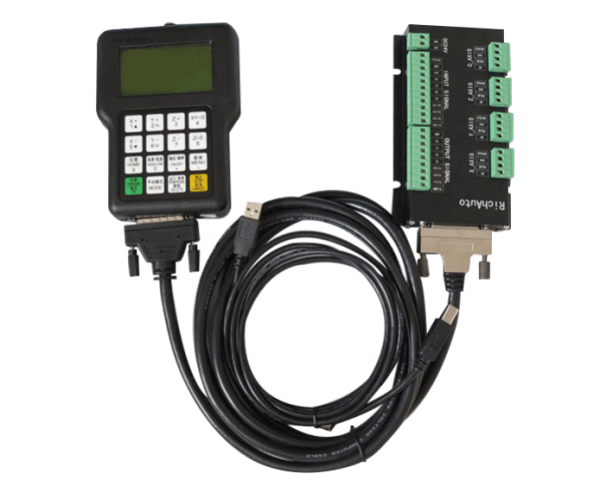

Control System	DSP A11
Table	Vacuum working table with 5.5kw pump

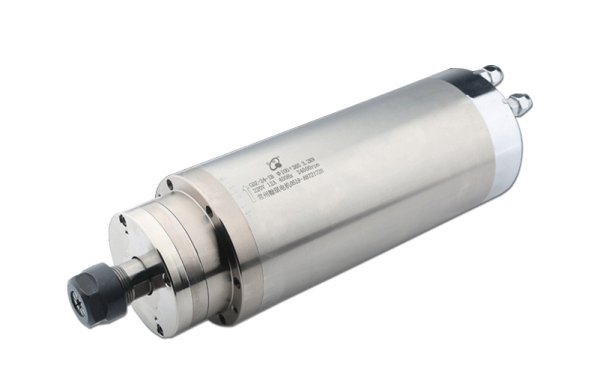

Spindle	Air cooling 4.5kw

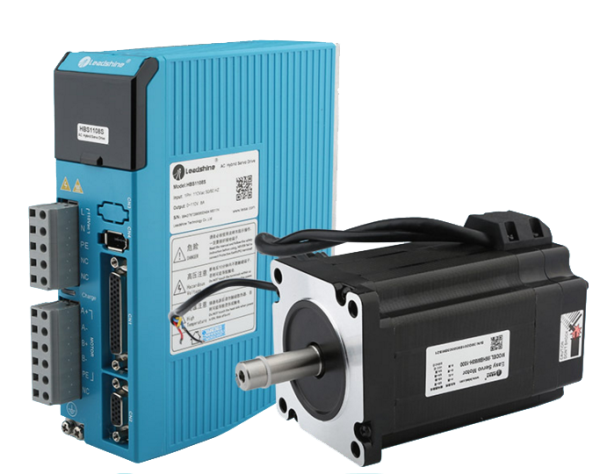

Motor	Stepper Motor

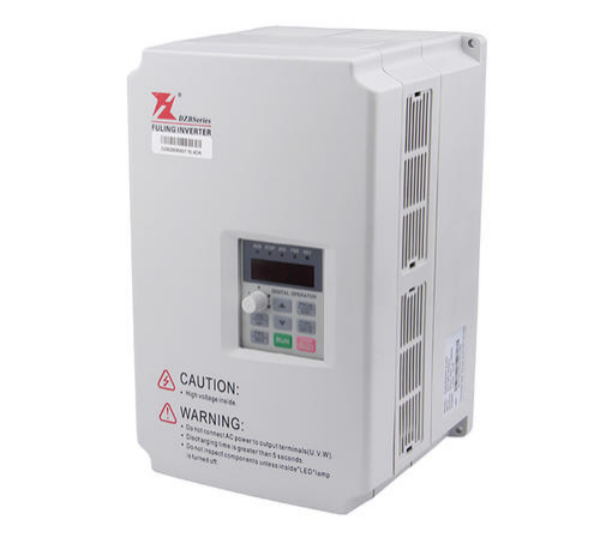

Inverter	Inovance
Ball screw	Taiwan TBI ball screw
Rail	Taiwan HIWIN brand
Max.speed	35000mm/min
Max cutting speed	25000mm/min
Spindle speed	18000/24,000RPM
Working voltage	AC380V/50-60Hz, 3-phase
Software	Artcam & Alphacam /UK
Packing dimension	2280x3200x1800mm 1300kgs
Command code	G code

Other hot sale stone cnc router for reference, if you are interested in it, pls contact me to confirm the main configurations:

Our service

1. We can Training you how to install the machine, and also training how to use the machine online. Or training you in our factory for free. We also can send engineer to your factory, you you should bear the fees.
2. Long time Guarantee for 2 years.
3. User-friendly English manual for machine using and maintaining.
4. 24-hour technical support by email or calling.

FAQ

1) I am new in this kind of cnc machine, is it easy operate?

Sure .before you order ,we can help you choose the suitable machine.
Before shipping ,we can help you take guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.

2) If machine have any problem after I ordered it, how could I do?

We have long guarantee,within warranty, Free parts send to you if machine have any problem.
Whole life service for machine, please feel free contact us if your machine have any problem.

3) MOQ order?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

Main parts

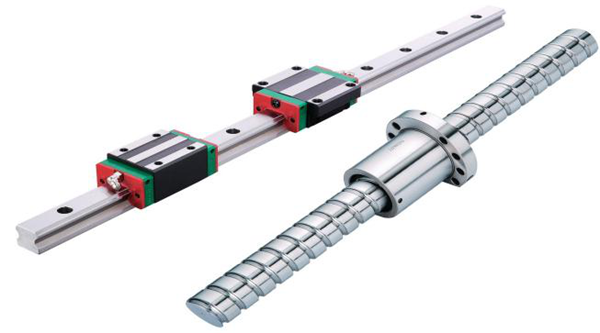

HIWIN Square guide rail and TBI ball screw.
More high accuracy and running stable

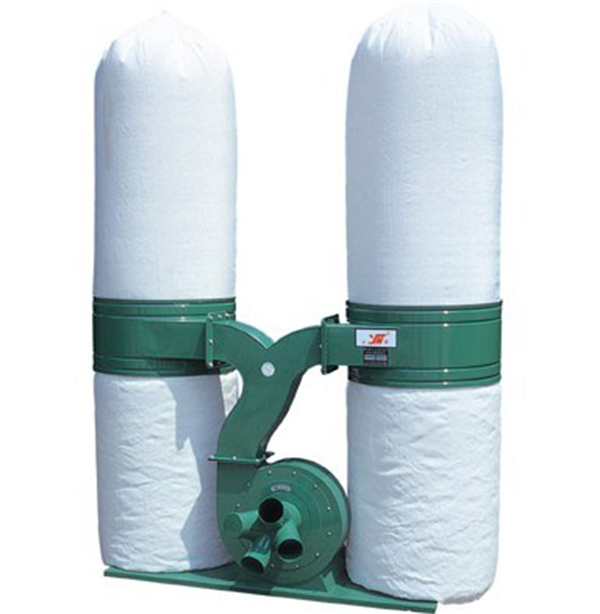

Double bags dust collector
Very useful ,can remove the dust and keep the workshop clean

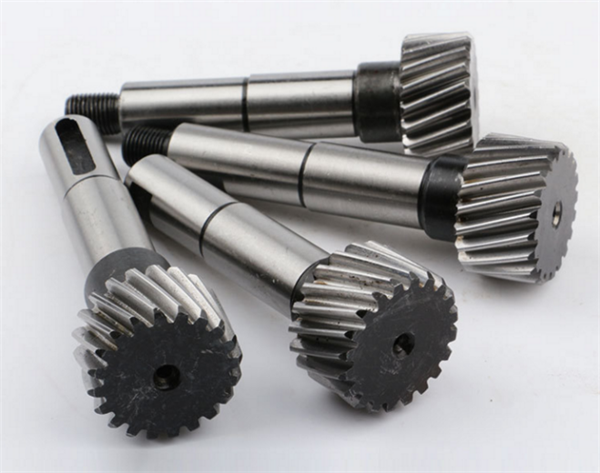

Import WMH rack pinion
High-precision rack and pinion, running more smoothly

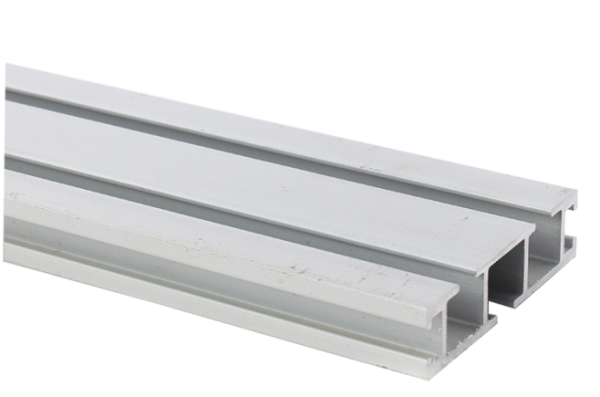

Aluminum T slot table
Easy fixed the materials by clamps and more And more economical

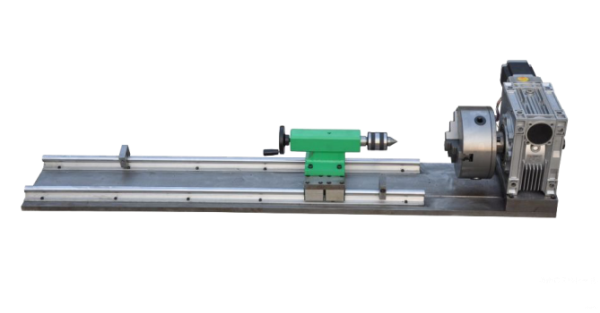

Rotary device (for optional)
Can can put the device on the table process on the cylinder and beam. when process on the cylinder ,then put on the table ,when process on the flat ,then remove it is ok. Very convenient and practical.
