Heavy duty Wooden router 1325 cnc engraving cutting machine

Short Description:

The bed is welded with thick-walled generous square tube, T-shaped structure, higher stability. Vacuum adsorption + T-slot tabletop design can meet the needs of adsorbing thin plates such as MDF, and can also meet the requirements of fixing thick solid wood plates. Solenoid valve control valve, one-button start, eliminating the cumbersome manual rotation of the valve.


Product Detail

Product Tags

Feature Of Machine

1. Imported Taiwan HIWIN square guide rails, longer life and smooth moving,

2. Chinese best brand Air cooling spindle with 18000rpm,

3. Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer lifetime,and it makes the machine more stable.

4. With off line DSP control system, It can support offline operation. easy to operate.

 5. Standard configured with leadshine servo motor or stepper motor FL118 and YAKO 2811 big driver,very powerful.

For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.

Application

1.wood Furniture products: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows,voice box, game cabinets, computer tables, sewing machines table, instruments.

2.others sheets processing: plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

3.Decoration industry: Acrylic, PVC, artificial stone, organic glass, plastic and some soft metals such as copper, alum- inum plate engraving and milling process.

Main Configuration

Model UW-1325T
X axis travel 1300mm
Y axis travel 2500mm
Z axis travel 250mm
Processing accuracy ±0.05mm
Repeat positioning accuracy ±0.05mm
Tool magazine In-line tool magazine 12 tools
Repeat positioning 0.05mm
Operating System DSP Control System
Guide rail Taiwan square rail
Running speed 55m/min
Carving speed 30m/min
Software operating environment Windows2000/XP/98
Engraving instruction G-code/HP-GL
Spindle HQD 4.5kw 18000r/min air-cooled spindle
Drive motor Leadshine servo motor and driver
Power supply 380V 50Hz

Packing and Service

Pre-Sales Service

1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.

2. 24-hours online Inquiry and consulting support.

3.Support sample testing .

4.We welcome you to visit our factory.

 After-Sales Service

 1. Training how to install the machine, training how to use the machine online.

 2.Engineers available to clients' factory for training.

 3.Guarantee for two year

 4.24-hour technical support by email or calling

 5.User-friendly English manual for machine using and maintaining

 6.Free technician training for customers.

 Main Parameters:

sghd

Heavy duty thickness welding body structure

Leadshine servo motor and driver

xgff
xfxghf

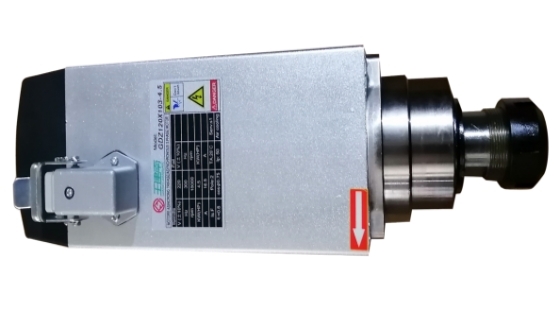

HQD or Changsheng brand air cooling spindle

HIWIN or PMI Square guide rails

dfxgf
fdxgxf

TBI ball screw

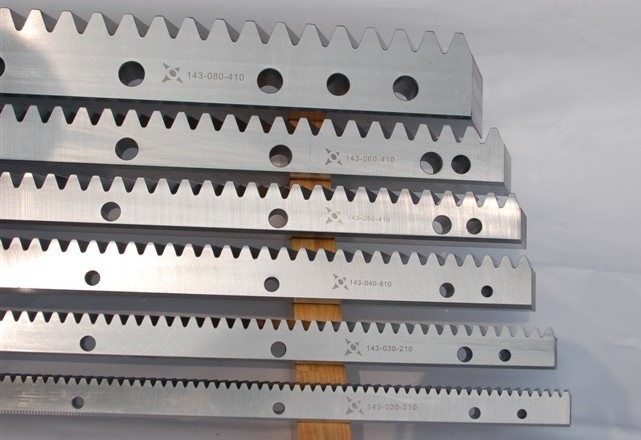

Taiwan XINYUE rack

xhfgx
xhgf

Vacuum table with T slot table

Auto oiling system for guide rail and rack and ball screw

zdg
xchgf

Off line DSP control system

Samples

xhgf(1)
xgfd

FAQ

Q1. How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Other kinds of payment we can consider if acceptable for us.

Q2. How long time will need for my machine to delivery?

For standard machines, it would be about 7-10 days. For customized machines according to your specific requirements, it would be about 15-20 working days.

Q3. How can I get the machine ,how to order ?

After we confirm all details ,then You can pay 30% deposit according the Proforma invoice, then we will start to make production. Once the machine is ready , we will send pictures and video to you, and then you can finish the banlance payment. Finally, we will pack machine and arrange delivery for you as soon as possible.

Q4. How to use the machine after receving the machine

Firstly , when you got machine , you need to contact with us ,our engineer will together with your to deal with it ,secondly ,we send user manuals and

 CD to you before you get the machine ,Thirdly Our professional technician online teach you until you can use it well by yourself.

Q5.About the Payment terms,how to pay money ?

1) T/T, means international bank transfer. 30% deposit, we produce the machine for you. 70% before shipping.
2)L/C at sight

3)D/P at sight
