Fiber Laser Cutting Machine Industrial Laser metal cut Equipment

Short Description:

This is one set Economy fiber laser cutting machine using a fiber laser generator as a source. it is one set new type of internationally developed fiber laser that outputs a high-energy density laser beam and collects on the surface of the workpiece to instantly melt and vaporize the area illuminated by the ultra-fine focus spot on the workpiece. The most import is with low cost and competitive price on the machine.


Product Detail

Product Tags

Feature Of Machine

(1). New design, reducing the vibration generated during the high-speed cutting process.

(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.

(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.

(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys

Application

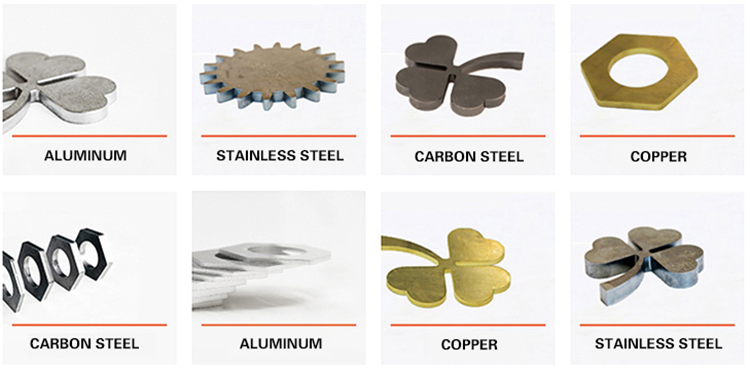

Applicable materials for laser cutting machine for metal

Durmapress Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Application Industries

Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & CabinetsProcessing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,Nameplates, etc

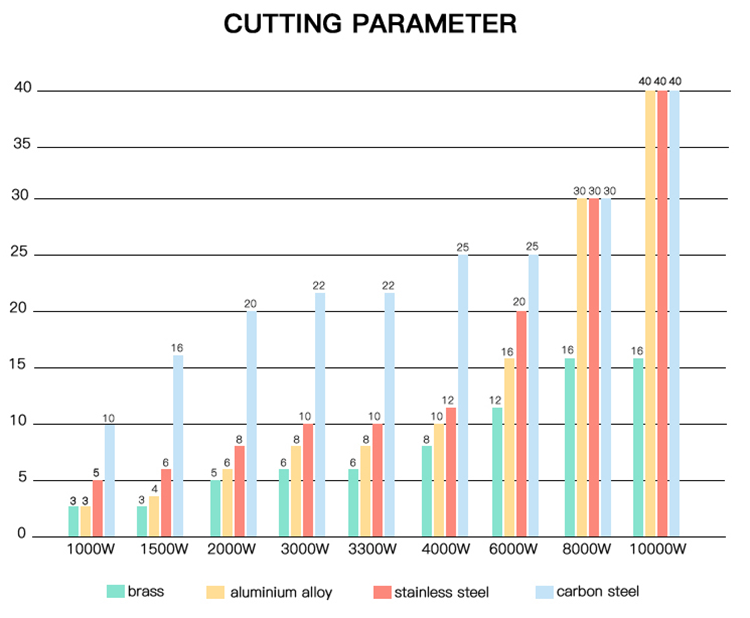

Cutting ability

specially used in cutting 0.5~14mm carbon steel,0.5~10mm stainless steel,galvanized plate

lectro-Galvanized Steel,silicon steel,0.5~3mm aluminium alloy,0.5~2mm brass and red copper etc thin metal sheet (The laser brandcan be customized, power optional from 1000w-6000w )

Main Configuration

Model UF-C3015L UF-C1325L
Working area 3000*1500mm 1300*2500mm
Miximum length of pipe(Options) 3000mm(or)6000mm
Laser type Fiber laser generator
Laser power(optional) 1000~4000W
Transmission system Double serve motor &gantry&rack&pinion
Maximum speed ±0.03mm/1000mm
Pipe cutting system(optional) yes
Maximum speed 60m/min
Maximum accelerated speed 1.2G
Position accuracy ±0.03mm/1000mm
Reposition accuracy ±0.02mm/1000mm
Graphic format supported CAD,DXF(etc)
Power supply 380V/50Hz/60Hz
zxsdf (3)

Main parts:

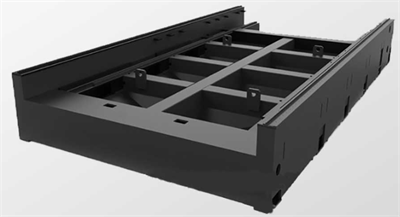

 zxsdf (4) CAST-IRON BED, ANTI-VIBRATION, STABLE, NO DEFORMATION *The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation*The bed is annealed at high temperature in a large annealing furnace
*The bed is formed by imported gantry milling once
*Using gantry rack double guide rail, double servo drive structure
*Improve the stability and rigidity of the Y-axis beam
*Ensure the high precision and high dynamic performance of Y-axis beam movement
*Y-axis beam runs smoothly at high speed, greatly reducing gas consumption

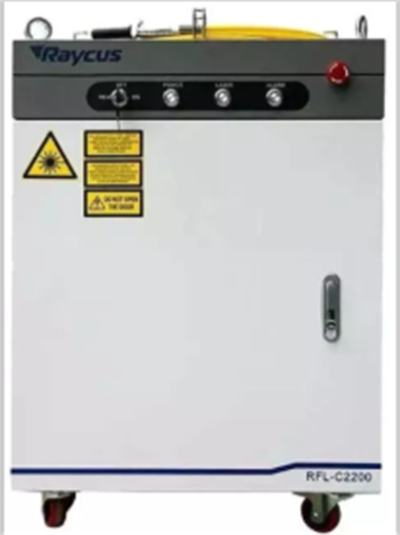

Raycus Fiber Laser1.Electro-optical conversion efficiency up to 30%.
2. They are excellent beam quality, high energy density, and reliability, a wide modulation frequency;
3. 100,000 hours of lifetime, free maintenance; Low energy consumption, only 20%-30% of the traditional CO2 machine.
 zxsdf (6)

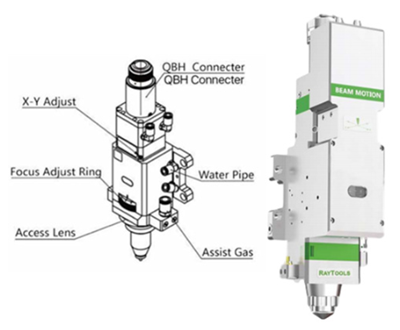

 zxsdf (5) RAYTOOLS AUTO-FOCUS LASER CUTTING HEAD*AUTOFOCUS: Through the built-in drive unit of the servo motor, the focusing lens is driven by the linear mechanism to automatically change the position in the focusing range. The user can set continuous zoom through the program to complete the rapid piercing of the thick plate and automatic cutting of different materials. *EFFICIENT: Reading the saved cutting parameters through the operating system can quickly change the focus position of the laser head, eliminating manual operation and improving efficiency by 30% *STABLE: Unique optical configuration, smooth and efficient airflow design and dual water-cooled design make the laser head work stably for a long time

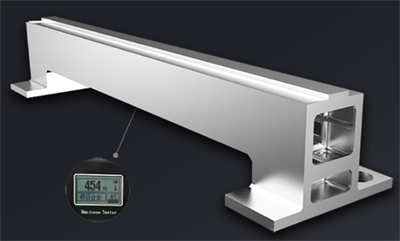

Cast Aluminum Integrated BeamThe whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment, so that the beam rigidity, surface quality, integrity and other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed cutting of all kinds of graphics under the condition of satisfying the precision.   zxsdf (8)

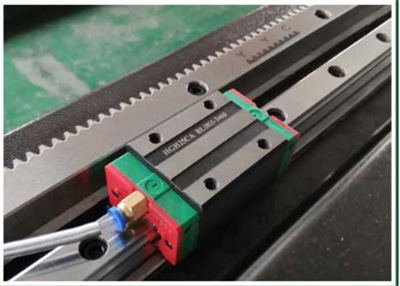

 zxsdf (7) GEARS, RACKS, GUIDES *The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm*Using Taiwan YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting*Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail

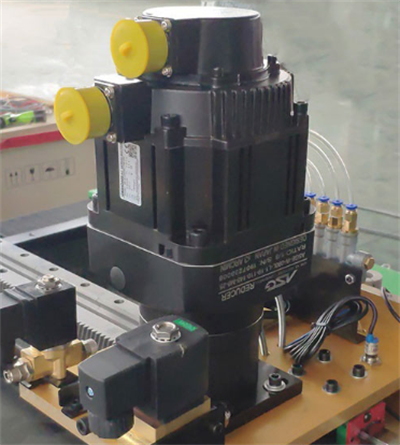

Japan Yaskawa servo motors and driver.  zxsdf (10)

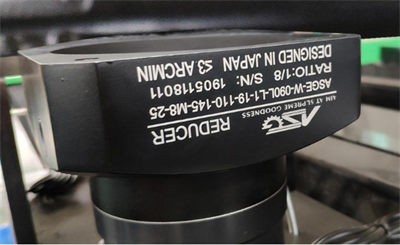

 zxsdf (11) High-precision ASG geared motor imported from Japan

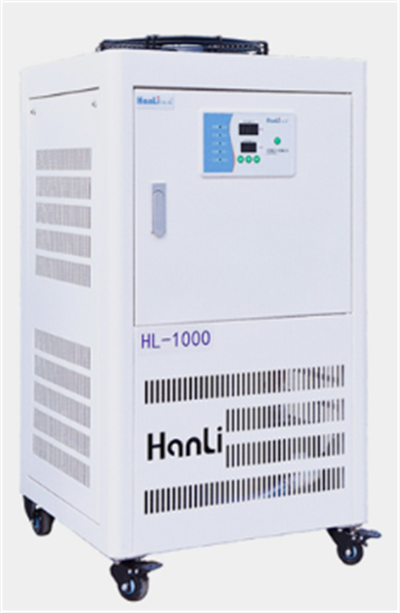

Water cooling control system:
The fiber laser and laser head even working at high temperature can be cooled quickly to ensure that the laser machine has stable power, high efficient and fast operation.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be alarm prompt and stop working,can protect the working life of fiber laser effectively.
 zxsdf (9)
 zxsdf (12) zxsdf (13)
Cypcut professional cutting system.The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

zxsdf (1)

zxsdf (2)

Our service

1.Pre-Sales Service:

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

2.After-Sales Service:

*Three-year warranty on the whole machine accessories if the machine parts have any problems,we can change the old machine parts to new ones free.
*Exceed three years warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call,email.
*Our technician can give you remote guide online(Skype/MSN/What's app/viber/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions,pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance.

3.UBO CNC supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:

*Training for Control software operation.

*Training for normatively turning on/off operation of the machine.
*Instruction of technical parameters, as well as their setting ranges.
*Basic daily cleaning and maintenance for the machine.
*Solutions for common hardware problems.
*Training for other questions and technical suggestions during daily production.

4.Training can be processed in the following ways:

*Workers of customers can come to our factory to get the most professional hand-by-hand training.
*We can send engineers to customers' country and do training for workers in customers' target factory.However,tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer,Skype and other instant communication softwares.

cnc sheet metal fiber laser cutting machine price FAQ

Q1: How can I get the best machine for me?

You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?

We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: This model is not suitable for me, do you have more models available?

Yes, we can supply many models . (130*250cm,150*300cm,200*300cm...) , and laser wattage (ranging from 500 watts to 5000 watts) If you'd like help determining which laser is right for your application or receive pricing information.

Q4:What's the guarantee, in case the machine breaks down?

The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q5:How about the documents after shipment? And how long is the delivery time?

After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q6:How's the payment?

Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU) or via alibaba trade insurance order payment

Q7:Do You Arrange Shipment For The Machines?

Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.
For FOB or CIF price, we will arrange shipment for you.

Q8:If the machine has problem in my place, how could I do?

We could send free parts to you in warranty period if machines have any problem under "normal use".

Q9: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information.

1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.

2)Your materials. Metal/Acrylic/plywood/MDF?

3)You want to engrave or cut?

If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
