Marble Granite Countertop Sink Hole Cutting Polishing Machine CNC Router Stone Carving Engraving Machine

Short Description:

Stone cnc router US-1325 is widely used in the stone industry to Engrave and process tombstone and stone furnitures which can be also used in the advertising to process models with various picture.
It’s widely used in marble engraving , marble cutting ,wood engraving, wood cutting ,bamboo engraving, bamboo cutting, acrylic engraving, acrylic cutting, plastic engraving, plastic cutting and metals such as copper engraving, cooper cutting and aluminum engraving , aluminum cutting. It can be also used for lettering, embossment,and characters cut in relief, etc.

Send email to us

Product Detail

Product Tags

Product description

1. Steel tube lathe bed, low center of gravity, strong bearing capacity, not easy to deformation, stable and reliable operation.
2. Adopt Ncstudio control system , through computer operation, easy and simple to operate. DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4. German double nut automatically disappear gap ball screw.
5. Break point and break knife continue engraving function, can engrave at any place as you like.
6. Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
7. Adopt High power frequency changing water cooled spindle, providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
8. Axis Y with two spindles, guarantee the cutting strength and engraving precision.

Application

Application Industry:

Stone processing engraving, milling, Cutting, mold manufacturing cutting, wood processing cutting, art and craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board and MDF processing cutting, stamp cutting.

Material:

Stone, marble, granite, wood, soft metal, rubber, acrylic, plastic and so on.

Wood Processing	Processing density boards ,stiletto for surfing boards ,processing of marbles, cabinet and furniture.
Craft	Engraving characters of any language and patterns on gifts and souvenirs, promitive processing and shaping of arttistic crafts and stiletto.
Advertisment	Engraving and cutting of various labels and number plate ,marble,ect for aristic effects on materials including marble ,brass ,steel and other metallic material.
Moulding	Engraving and cutting of various labels and number plate ,marble,ect for aristic effects on materials including marble ,brass ,steel and other metallic material.
Artitechtural models	Engraving fine window ,fencing and wall patterns .ect.
Seal	Engraving seals and medal on materials such as buffalo horn ,wood ,ect.
Engraving character, number and other pattern on label for products and product directly	Engraving character, number and other pattern on label for products and product directly.

Main Configuration

Model	US-1325
Working area:	1300x2500x300mm
Spindle type:	water cooled spindle/air cooled spindle optional
Spindle power	5.5 kw -9.0kw
Spindle rotating speed	18000rpm/24000rmp
Power (except spindle power)	6.8KW (include powers of: motors, drivers, inverters and so on)
Power supply:	3phase 380v/220v, 50 Hz
Worktable:	T slot table with water tank
Locating precision:	<0.03mm
Min shaping character:	Character:3x3mm,letter:1x1mm
Operating temperature:	5°C-40°C
Working humidity	30%-75%(without condensed water)
Working precision	±0.03mm
System resolution	±0.001mm
Control configuration:	Mach3/ DSP/ NK260/ Syntec 6MA control system optional
Data transfer interface:	USB/PC
System environment:	Via computer/ its own panel
Spindle cooling way:	Water cooling by water pump/ Air cooling by fan inside spindle
Graphic format supported:	G code: .u00, mmg, * plt, *.nc
Compatible software:	ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….
Cutting thickness:	0-40mm also (depends on different material)
Z tool sensor:	yes
Positioning pins:	Optional
packing	Plywood case (veneer wood case for export)
Optional parts	1 Rotary device model professional for cylinder stone colomn 2. Oil spray cooling system for metal3. Dual-heads or more heads 4. Servo motors (Taiwan brand or Japanese brand) 5. Other custom features

Other hot sale stone cnc router for reference, if you are interested in it, pls contact me to confirm the main configurations

Our service

Technical Support
1. 24 months quality guaranty for the machine main parts, excluding the consumables, such as water pump, air pump, exhaust fan, etc.
shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. Manual of video with machine teach the client how to setup, test, align laser, operate and maintain, also
supply the specifications setting for speed and power to engrave or cut on various material.
5. Life long tech support by email and web camera.
Warranty
2 years for laser machine
10 months for laser tube
Delivery Time
1. for small machine, our standard model, generally 7-10 working days
2. for big machine , our standard model, generally 10-15 working days
Payment Terms
100% T/T, 30%-45% as deposit, the balance before delivery

FAQ

1. I never use this kind of machine before, is it easy to learn?

User-friendly English manual and operation video will be sent together with the machine, if there is still
any question, we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our engineer will give you
professional guidance.

2. If the machine has problem, what can you do to help?

Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed.

3. How could I know if this machine is suitable for me?

Before ordering, we will provided every details of the machine for your reference, or you could tell us your
work piece,our techniciant will recommend the most suitable machine for you. Furthermore, we can make a
sample in advance for you to check if your drawing is provided.

4. MOQ ?

Our MOQ is 1 set machine.We could send machine to your country port directly,please tell us your port name.
There will be best shipping freight and machine price send to you

Main parts

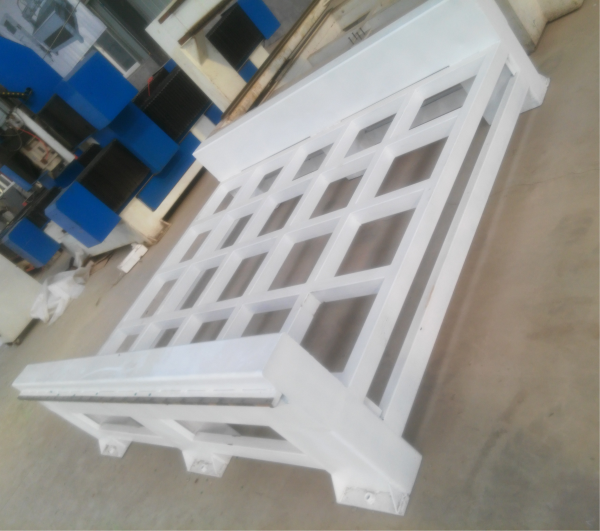

Heavy duty body structure.

Can effectively reduce the vibration caused by exercise, thereby improving accuracy.

HIWIN Square guide rail and TBI ball screw.

More high accuracy and running stable

Powerful Stepper motor

Much more powerful and running quickly

Quality Leadshine driver

Signal input is more stable, effectively reducing other signal interference

One-piece tooth box

Effectively reduce accuracy problems caused by assembly problems

Import WMH rack pinion

High-precision rack and pinion, running more smoothly

Fuling inverter

The signal control is more stable, making the spindle run more smoothly

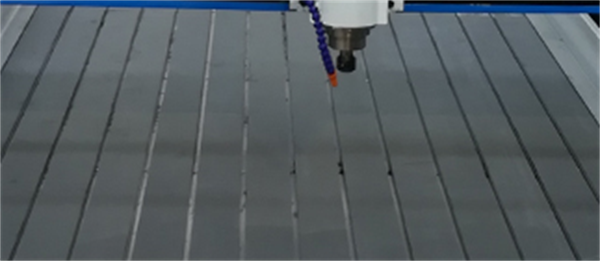

T slot table with PVC and water tank
Easy fixed the materials by clamps
PVC help protect table
Water tank for help collect the waste water

Ruizhi Auto DSP control system

Off line control the machine ,can control the machine easily without computer

Rotary device (for optional)

Can can put the device on the table process on the cylinder and beam. when process on the cylinder ,then put on the table ,when process on the flat ,then remove it is ok. Very convenient and practical.

Powerful HQD 5.5kw Spindle

More powerful to improve the efficient
