Cnc Fiber Laser Marking Machine 20W Fiber Laser Marking Machine Laser Marker Raycus Source

Short Description:

This model is mainly light and portable, not only can complete the work perfectly, but also takes up less space. More suitable for families, advertising shops. At the same time, this model adopts a fully enclosed design and pays more attention to safety under the premise of focusing on quality.


Product Detail

Product Tags

Feature Of Machine

1.portable type Fiber Laser marking machine Fast marking Speed and High Efficiency

2.High Electro-optic Conversion Efficiency

3.Perfect marking effect

4.Integrated structure,small and compact size,less occupied area,easy transportation

Characteristics of fiber laser marking machine

1.Multiple power laser light source, available for many industries;

2.Fast speed, high efficiency, stable output power, high reliability;

3.Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;

4.High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;

5.Small and compact size, easy to carry, save production space.

Application

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

Alloy and metal oxides: Anodized Aluminum

Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.

Application industry of Fiber Laser Cutting And Marking Machines

1. Electrical Engineering and Electrical part and component

2. Mobile (Cover, battery, keyboard, IPhone Case)

3. Jewellery(Ring, pedetant, bracelet),eyeglass,clocks and craft

4. Building materials,PVC pipe

5. Car motor car spare part, Instrument and meters and cutting tool

6. plastic case,aviation and aerospace,

7. military product,hardware fitting and accessory,sanitary appliance

8. food and beverage ,Medicine package and medical instrument,solar Pv industry

Main Configuration

Parameter
Model UF- M110
Laser Power  20w/30w/50w/80w
Laser Wavelenth 10.6μm
Beam Quality m2<6
Repeatable Accuracy ≤50KHz
Marking Area 110mm*110mm/200mm*200mm/300mm*300mm
The fastest scanning speed  7000mm/s
Marking Depth  <0.3mm
Min. Width 0.02mm
Min. Letter 0.025mm
Resetting Position Accuracy ±0.002mm
Total Power ≤2.8KW
Power Supply 220v/50Hz



Our service

Pre-sale service

1. Free sample marking

For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.

2. Customized machine design

According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.

After-sale Service

1. Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.

2. If you have problems while using, 24hours online professional advice available.

3. Lifetime software free upgrades.

4. Fiber laser source we warranty for 3 years ,the other parts warranty for 2 years.

FAQ

Q: This is the first time I use this kind of machine, is it easy operate?

A: There are guide video that show how to use machine and English instruction book send to you with machine.If there is still have any question, we will provide free professinal guide for you until you could use machine well.

Q: Can I get a machine according to my own requirements?

A: Sure.We can change the type and color and appearance of the machine according to your preferences and requirements, so that we can satisfy you.

Q: If the machine has problem in my place, how could I do?

A: The machine has three years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".

Q: Can I visit your factory?

A: Yes! We greatly welcome customers to visit our factory.

Main parts

2

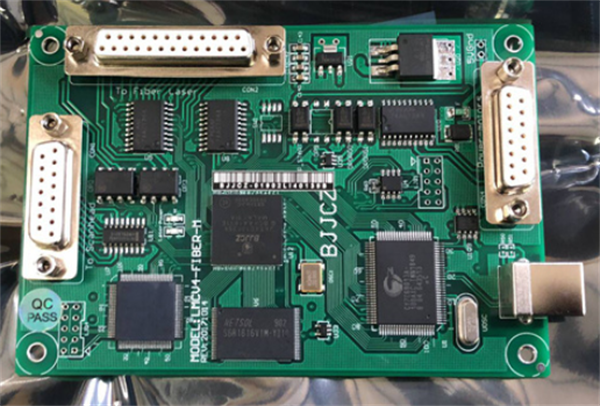

 BJJCZ control board with EZCAD software:







4

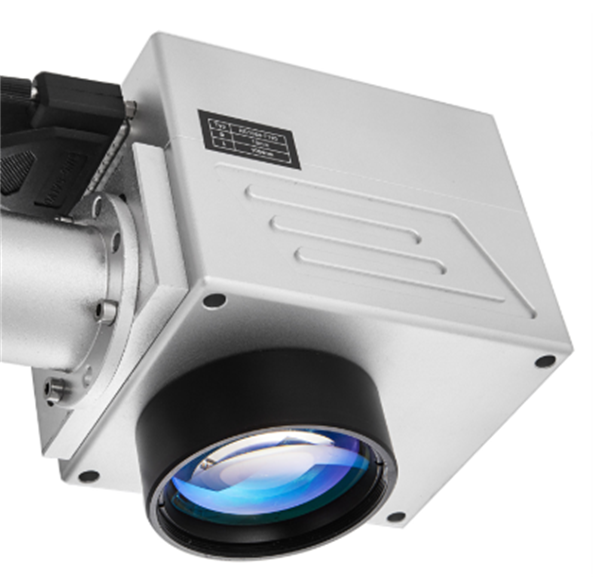

Galvanometer System

High-speed digital scanning galvanometer system, the imported high-speed galvanometer scanning head greatly reduces the delay and improves the marking speed.









6

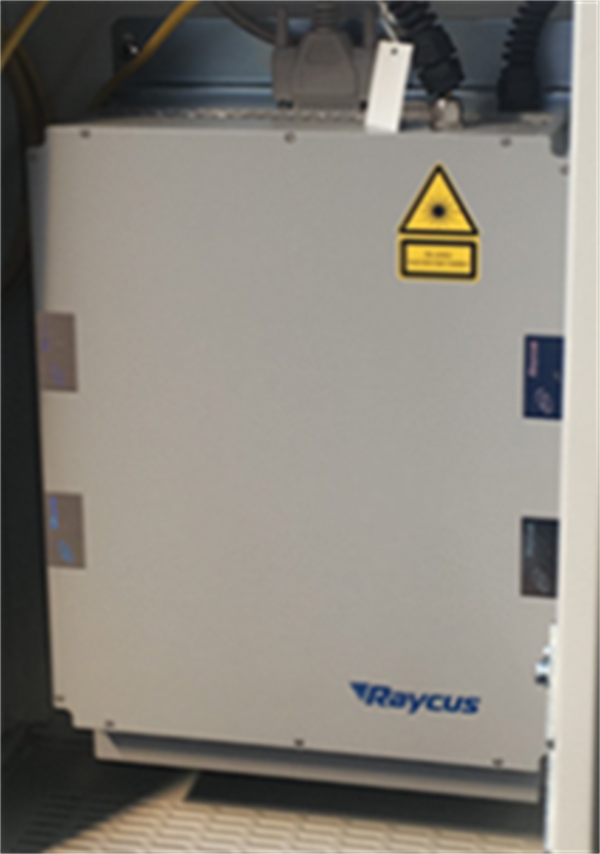

Raycus laser with pulse duration adjustable with best laser beam quality.



















3

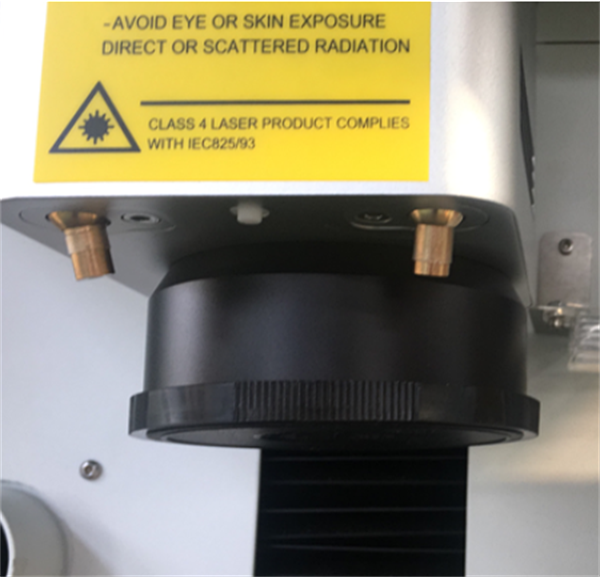

Laser Focusing Function(Double red dots more easy to get focus. )
Focus can be automatically performed. As long as the thickness of the material to be marked is entered in the software, the machine can automatically focus.











5

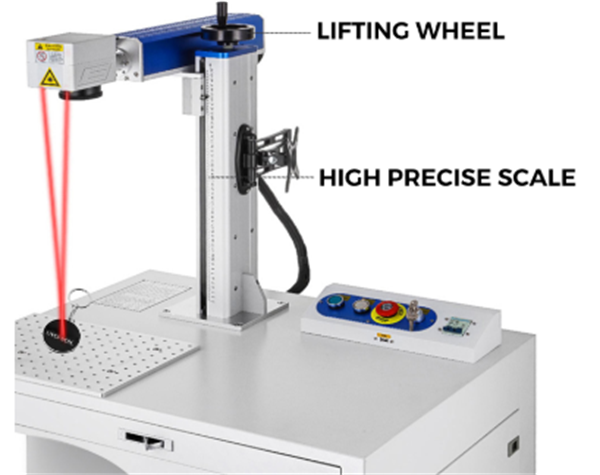

Elaborate Lifting Wheel
Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of the galvanometer system, and the little handle on the wheel makes the adjustment easier.







Make product display

7
8
