Linear Automatic Tool Change Wood CNC Carving Router ATC Machine

Short Description:

1. This is an auto tool changer CNC router; it can change 12 tools automatically. And the tool magazine under the gantry, can save much time improve the efficient.

2. This model chooses China made 9KW HQD ATC air cooling spindle, Japan YASKAWA Powerful servo motor and driver, and Delta 11 KW inverter.

3. Taiwan LNC control system to avoid the mistake of the software. It can protect the table and the machine. This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools.

Product Detail

Product Tags

Feature Of Machine

1.Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-term use of no deformation.
2.Machine adopts Taiwan SYNTEC/LNC control system,high-performance industrial control system ,which has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture,with fast and smooth three-dimensional processing, carving and cutting.
3.The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four ball slider, loading capacity, smooth running, keeping high accuracy.
4.The machine worktable adopts the international leader vacuum technology, surface density, deformation, high adsorption capacity,which can strongly absorb different materials, convenient maintenance. automatic lubrication, only need to hand gently press can achieve the whole machine maintenance.
5.The software compatibility: compatible type3/castmate/artcam/ Wentai/Mastercame and other design software.

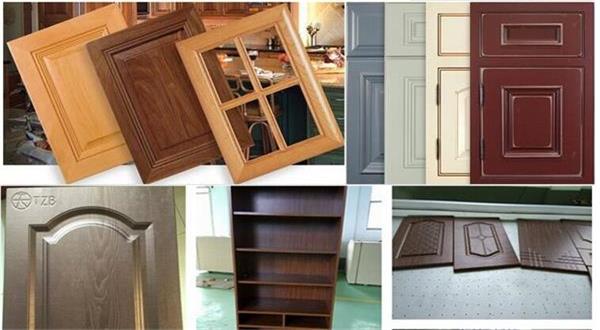

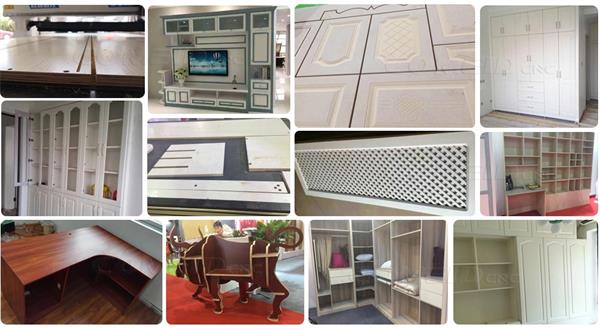

1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum

Main Configuration

Model UW-A1325L
Working Area: 1300*2500*200mm
Spindle Type:  water cooling spindle
Spindle Power: 9.0KW Chinese ATC
Spindle Rotating Speed: 0-24000rpm
Power (except spindle power): 5.8KW (include powers of: motors, drivers, inverters and so on)
Power Supply: AC380/220v±10,  50 HZ
Worktable: Vacuum Table and T-slot
Driving Syestm: Japanses Yaskawa servo motors and drivers
Transmission: X,Y :Gear rack, high accuracy square guide rail,
Z: ball screw TBI and hiwin square guide rail
Locating precision: <0.01mm
Min Shaping Character: Character:2x2mm,letter:1x1mm
Operating Temperature: 5°C-40°C
Working Humidity: 30%-75%
Working Precision: ±0.03mm
System Resolution: ±0.001mm
Control Configuration: Mach3
Data Transfer Interface: USB
System Environment: Windows 7/8/10
Spindle Cooling Way:   Water cooling by water chiller
Limited Switch: High sensitivity limited switches
Graphic Format Supported: G code: *.u00, * mmg, * plt, *.nc
Compatible Software:   ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares….



2 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by emaill skype cell online.


Quality Control

1.1 In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
1.2 Each machines will run around 24 hours and tested about 8 hours before delivery to ensure
normal using in your workshop.

Guarantee & After sale services

2.1 Free training available here China or teaching video with machine to your Country
2.2 12 months guarantee under normal use & Lifetime maintenance free of charge.
2.3 Spare parts shall be changed free of charge if any problem during the warranty period
2.4 Consumable parts will be offered at agency price when replacement needed.

OEM service available

3.1 XYZ working size customized according to your requirement
3.2 Main spare parts: motor,system,inverter choose as your choice
3.3 Machine brand and oil painting customized (agent available or MOQ 10 sets)


4.1 Standard model
3 axis cnc router <=12 working days
4 axis cnc router <=20 working days
5 axis cnc router around 90 working days
4.2 Customized model
Depends on special spare parts delivery time
