3d Woodworking Cnc Router Engraving Milling Machine For Wood

Short Description:

This is a cost-effective numerical control equipment, which can not only perform ordinary door panel carving, hollow carving, character carving, but also cut various non-metallic plates, such as density board, acrylic, two-color board, solid wood board, etc.


Product Detail

Product Tags

Feature Of Machine

1. Square tube lathe bed and steel gantry make the machine body more stable and much stronger;
2. Original high speed HQD air cooling spindle can make sure to work stably for the long time;
3. Ieadshine servo motor and driver and driver which make sure high speed, accurate location and more stability;
4. It is easy to learn and operate with separate keyboard control system and master the  application in a short time.

Application

* Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cupboard doors, interior doors, sofa legs, headboards and so on.
* Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

Main Configuration

Descriptions Parameters
Modle UW-1325L
Working area 1300x2500x200mm
Machine size 2000x3100mmx1700mm
Guide Linear 20 square/Taiwan
Control System DSP A11
Table Aluminum T slot table
Spindle water cooling HQD 4.5kw spindle
Motor Stepper Motor
Inverter Fuling inverter
Ball screw Taiwan TBI ball screw
Rail Taiwan HIWIN brand
Max.speed 35000mm/min
Max cutting speed 25000mm/min
Spindle speed 18000/24,000RPM
Working voltage AC380V/50-60Hz, 3-phase
Software Artcam & Alphacam /UK
Packing dimension 2280x3200x1800mm 1300kgs
Command code G code

Other hot sale stone cnc router for reference, if you are interested in it, pls contact me to confirm the main configurations

Our service

1.Long time guarantee for 2 year warranty and whole life service for the whole machine.
2.Teaching video and detailed manual sent with the machine.
3.24 hours online support.and Professional technical support
4.Free design and guide for customer and Free software update
5.within warranty provide new parts for free.

FAQ

Q1.how to get the suitable machine and best price ?

please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the max size of these material ?( length ? Width ? Thickness ?

Q2.If I am new in the cnc, how to operate machine,can you teach us?

Yes,we will ,if you can come to our factory,will arrange engineer teach you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal. Of course ,we can take some operation video for help you learning it.

Q3.How about your after-sales service?

we offer you 7*24 hours service phone,Whatsapp or Wechat.etc online service.

Q4. Quality Control

The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.

Main parts

1





HIWIN Square guide rail and TBI ball screw.
More high accuracy and running stable







3















Quality Leadshine driver
Signal input is more stable, effectively reducing other signal interference













5















Import WMH rack pinion
High-precision rack and pinion, running more smoothly













6

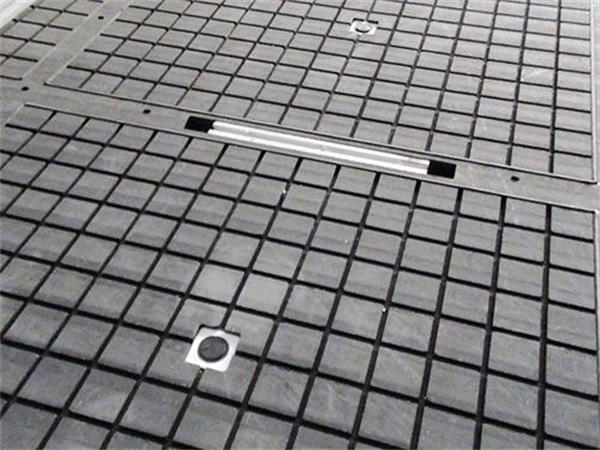

Vacuum table with T slot table
Easy fixed the materials not only can fixed by clamps ,but also can Use vacuum adsorption .







8
9







Powerful HQD 5.5kw Spindle
More powerful to improve the efficient







13

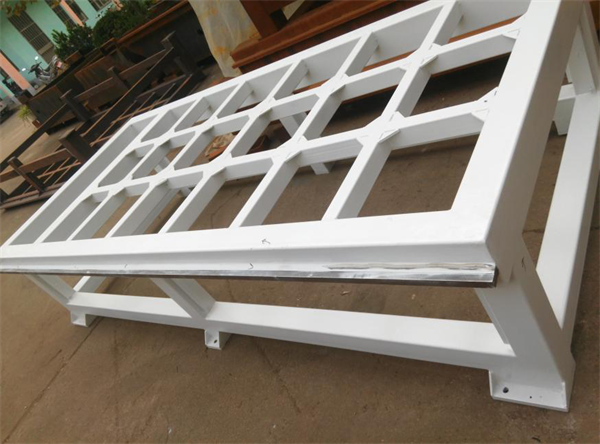

Heavy duty body structure.
Can effectively reduce the vibration caused by exercise, thereby improving accuracy.









2









Powerful Stepper motor
Much more powerful and running quickly









4

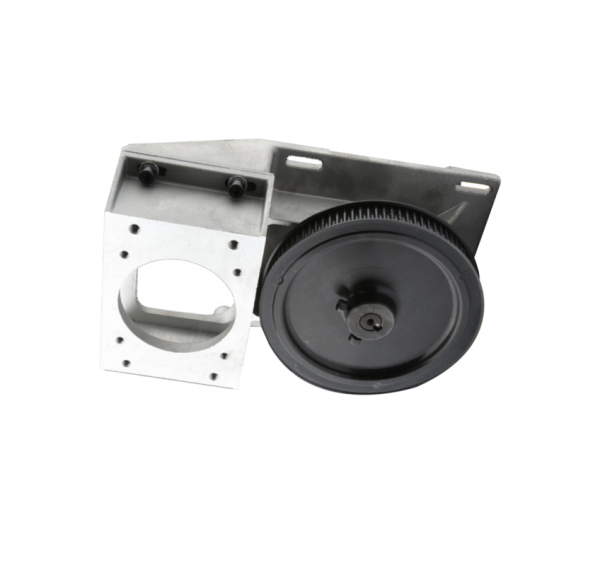

One-piece tooth box
Effectively reduce accuracy problems caused by assembly problems











6.1
6.2











Fuling inverter
The signal control is more stable, making the spindle run more smoothly









8









Ruizhi Auto DSP control system
Off line control the machine ,can control the machine easily without computer

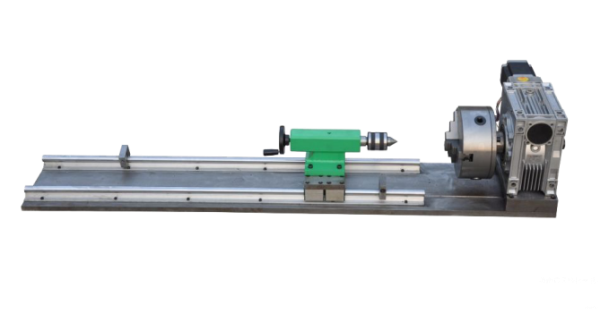

Rotary device (for optional)
Can can put the device on the table process on the cylinder and beam. when process on the cylinder ,then put on the table ,when process on the flat ,then remove it is ok. Very convenient and practical.





10









Auto oiling system
Automatically oiling for the guide rail and rack pinion









Make product display

6
5

Machine accessories

1)-Tool box

1.2

5)-software

1.6

2)-Spanner

1.3

6)-Router bits

1.7

3)-Clamp plate

1.4

7)-PCI card and data wire

50

4)-Collets

1.5

8)-U FLASH DISK

1.9

Packing and shipping

2.0
