Cnc Automatic Laser Side Hole Machine Horizontal Drilling Machinery

Short Description:

UBOCNC laser side hole drilling machine is A professional special machines used for horizontal perforated plate custom furniture,Completely replace the traditional drill, to get rid of the traditional punching mode.Dependence on skilled workers, scan code processing directly.Through the production with special design software; adopt Taiwan linear guide domestic ball screw; Taiwan reducer;; independent computer control, operation and maintenance more convenient.

Product Detail

Product Tags

Feature Of Machine

1.Laser Positioning Sidle Holes Drilling Machine is the research and development of a CNC Machine for furniture side holes drilling.

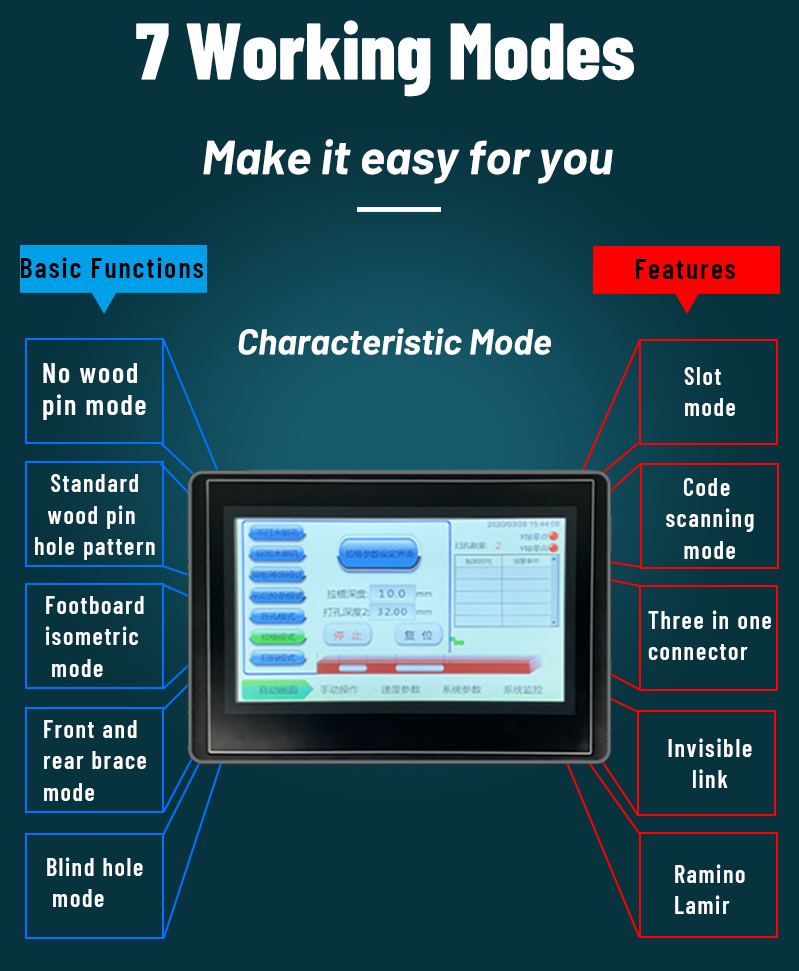

2.The machine is fool-style operation, without any software interfacing, three small plates can be processed at a time for realizing three tools procession.

3.Higher working speeding, higher working efficient.

4.One set sidle drilling machine can work well with two or three sets CNC Router.It is easily to solve the horizontal drilling problem.

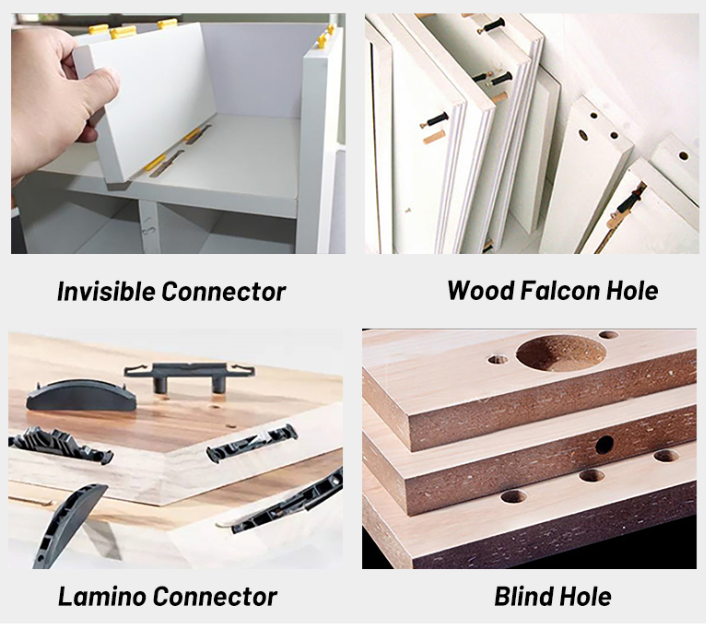

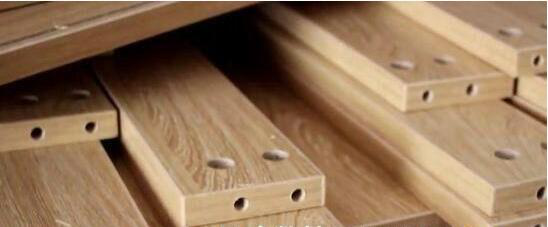

5.Meanwhile, it can achieve short switch plate, dowel holes, single switch holes,blind holes and meeting a wide range of technology needs.


Machine Application :

Horizontal drilling hole CNC router is mainly used for wood panel hole drilling , This machine combines all the elements needed for a furniture manufacturer to design and machine custom cabinets,wardrobe, custom furniture and support products. It is specialized in making nested based production of cabinets, closet and customized furniture.

Application Industry:

The furniture industry: cabinets, doors, panel, office furniture, doors and windows and chairs

Wood products: speakers, game cabinets, computer tables, sewing machines, musical instruments

Decoration industry: Acrylic, PVC, MDF, artificial stone, glass, plastic, and copper and aluminum and other soft metal sheet cutting engrave .

Main Configuration

Item Parameter
working area 2500*1000*50mm
Voltage 220V/380V
Spindle 3.5kw /4.5kw spindle
Spindle Speed Adjustbale0-24,000rpm
Drive Motors Servo Motor
Control System  XINJIE PLC
Gear rack XINYUE
Gear rail Taiwan HIWIN
Z Structure Taiwan CSK Rail Linear Bearings
Inverter   FULING
Command G code
Dimension(L*W*H) 3400*2280*1180mm
Frame Heavy Structure Welded Steel, 5-side milled
Reducer Taiwan planetary reducer
Software Compatibility Type3/Artcam/ Software (Option: UcancameV9 Software)
Max. Rapid Working Rate 120000mm/min


HIWIN guide rail

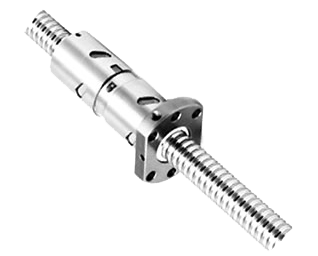

TBI ball screw

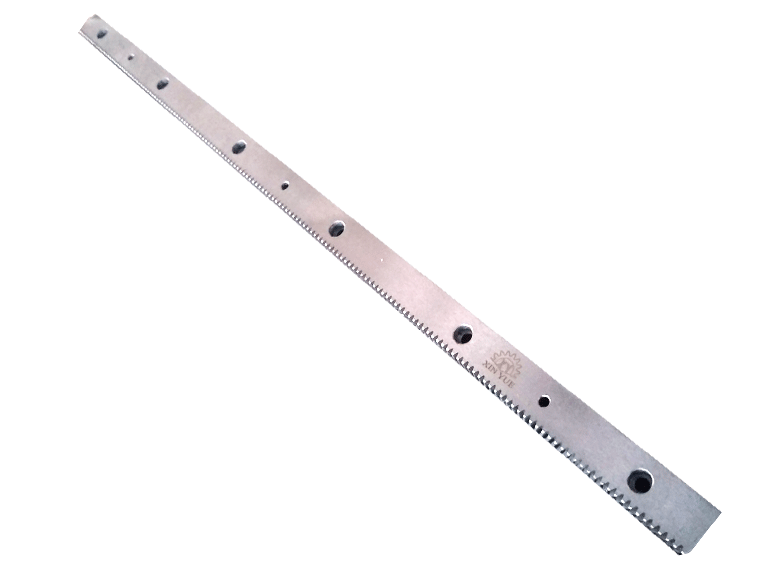

XINYUE rack pinion

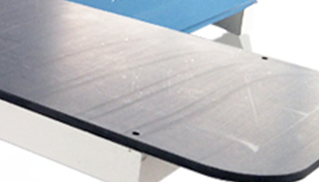

A PVC table

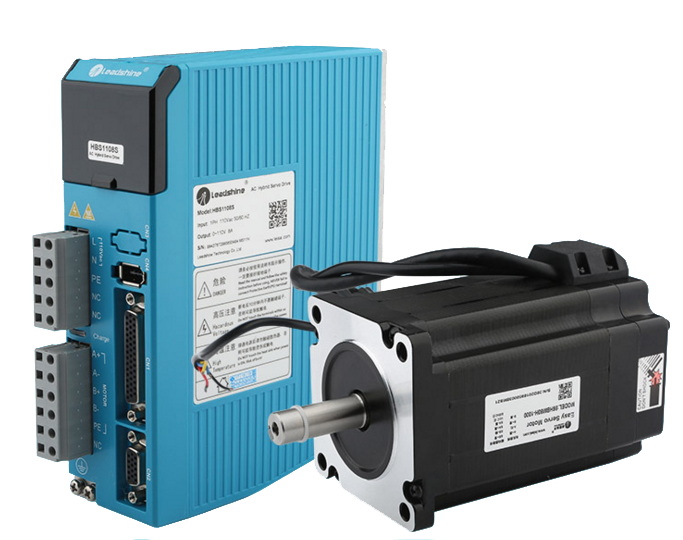

powerful servo motor and driver

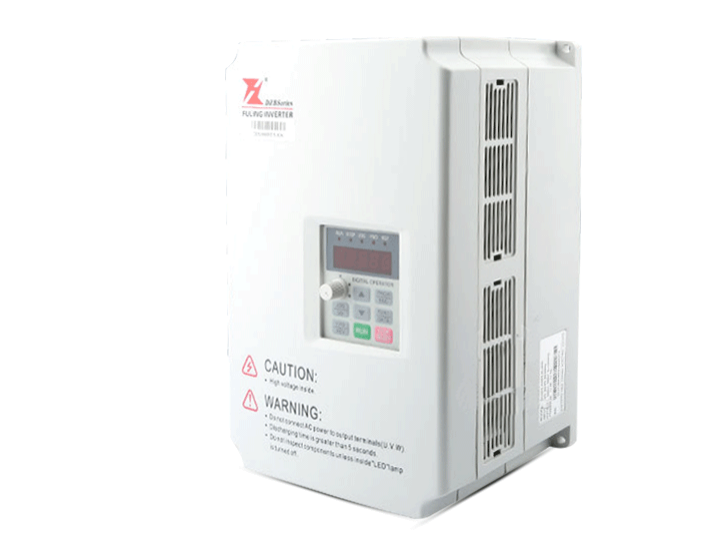

Fuling inverter

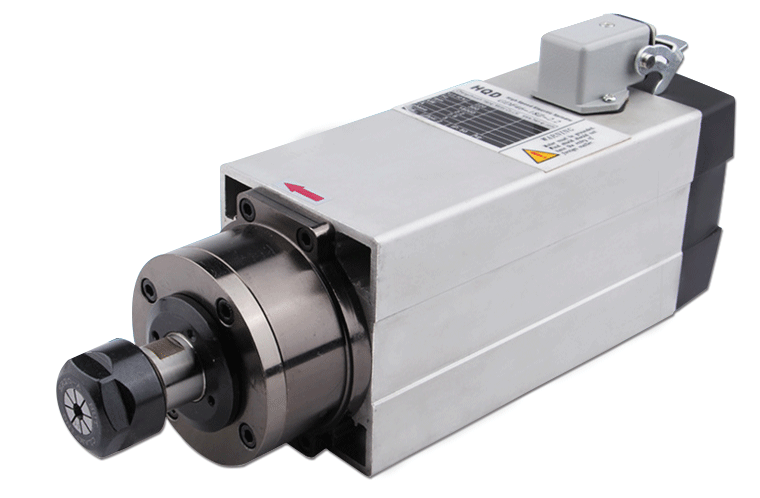

4.5kw air spindles


Fuling inverter

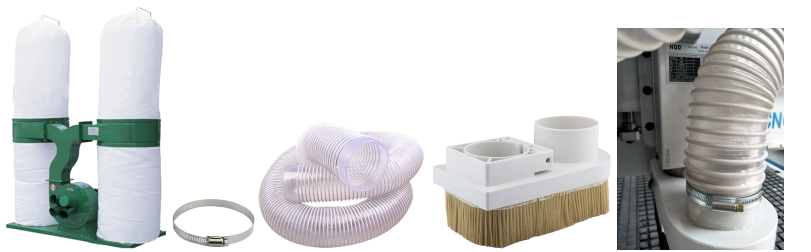

Dust collect and necessary parts   for optional


Packing and Service:


1.First innermost layer is EPE pearl cotton film package.
2.Then middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.At last packing into wooden box.


Pre-sale services:

 Provide the free consultation of the equipment .

 Provide the standard device and the flow chart.

 According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

 Welcome to visit our factory.

Services during the sales:

 Inspect the machine before leaving the factory.

 Oversea install and debug the equipment.

 Train the first-line operator.

After sale services:

 24 hours online service.

 Provide the VIDEO with Install and debug the equipment.

 Provide technical exchanging.




Q: Can I get a machine according to my own requirements?

A: Sure. We accept OEM and ODM

Q: This is the first time I use this kind of machine, is it easy to operation?

A: There are guide video that show how to use machine and English instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

Q: What’s your MOQ and delivery?

A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

Q: How is your after sales service?

A: Our sales are online for 24-hours. We can also supply overseas install service.

Q: If my machine is broken. Can you repair it for me?

Q: If my machine is broken. Can you repair it for me?
