3d Woodworking Cnc Router 4 Axis Cnc Engraving Milling Machine For Wood With 300mm Rotary Axis

Short Description:

This four axis wood cnc router is not only able to cut and engrave flat wood, MDF, chipboard, plywood, etc, but also can engrave 3D on round columns. The 4th rotary locates at the side of the table, so it is very convenient to load or unload the workpiece. This wood cnc router  utilizes 4 axis controller, so it is able to process irregular columns like furniture legs, statues, figures and so on.


Product Detail

Product Tags

Feature Of Machine

# Mist spray metal cooling system for vacuum table metal work, Rotary device for cylinder materials, water tank for metal cooling water.
# Rotary device for cylinder materials, pneumatic materials alignement and foot switch.
# Rotary device is available for processing cylinder object, but at a very economical price.
# High frequency water-cooling electronic spindle can let machine working in long time.
# Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
# Taiwan Original TBI ball screw for Z travel.
# Taiwan HIWIN Linear guide,much more stable.

Application

Applicable Materials:
The Machine is suitable for working with materials such as: all kinds of woods, all kinds of plastics, composite, plywood, MDF, polystyrene, wax, PVC and many other materials. And it can also work with materials such as copper, brass, aluminum, etc.

Applicable Areas:
Manufacture of furniture (chairs, cabinets, door facades ...)
Furniture covers and interior decor
Advertising sphere (volume letters, emblems, logos ...)
Cliche stamps, molds and much more

Main Configuration

Descriptions Parameters
Modle UW-1325VR
Working area 1300x2500x200mm
Machine size 2000x3100mmx1700mm
Guide Linear 20 square/Taiwan
Control System DSP A11
Table Vacuum working table with 5.5kw pump
Spindle Air cooling 4.5kw
Motor Stepper Motor
Inverter Inovance
Ball screw Taiwan TBI ball screw
Rail Taiwan HIWIN brand
Max.speed 35000mm/min
Max cutting speed 25000mm/min
Spindle speed 18000/24,000RPM
Working voltage AC380V/50-60Hz, 3-phase
Software Artcam & Alphacam /UK
Packing dimension 2280x3200x1800mm 1300kgs
Command code G code
Rotary diameter 200mm or customized

 Other hot sale stone cnc router for reference, if you are interested in it, pls contact me to confirm the main configurations:

Our service

1. Long guarantee 2 years warranty for whole machine, all life time technical and oversea engineer service.

2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. Software is on update for free whole life.

3. Our engineer could support you technology to your country if necessary.

4. Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.

5. English manual and CD video for machine using and maintaining will send to you with the machine.

FAQ

1. What kinds of processing can the CNC router do?

A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape’s cutting.

2.What kinds of materials can the CNC router work on?

A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.

3.Guarantee & After-sale Service

A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller’s factory.
D..We can send engineer go to overseas training

4.Delivery Time

Usually, for normal model, within 15 -20 days after get the deposit

5. Payment Terms

A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us

Main parts

1





HIWIN Square guide rail and TBI ball screw.
More high accuracy and running stable







3















Quality Leadshine driver
Signal input is more stable, effectively reducing other signal interference













5















Import WMH rack pinion
High-precision rack and pinion, running more smoothly













6









Vacuum table with T slot table
Easy fixed the materials not only can fixed by clamps ,but also can Use vacuum adsorption .







8
9







Powerful HQD 5.5kw Spindle
More powerful to improve the efficient







13







Heavy duty body structure.
Can effectively reduce the vibration caused by exercise, thereby improving accuracy.









2









Powerful Stepper motor
Much more powerful and running quickly









4













One-piece tooth box
Effectively reduce accuracy problems caused by assembly problems











6.1
6.2











Fuling inverter
The signal control is more stable, making the spindle run more smoothly









8









Ruizhi Auto DSP control system
Off line control the machine ,can control the machine easily without computer













Rotary device (for optional)
Can can put the device on the table process on the cylinder and beam. when process on the cylinder ,then put on the table ,when process on the flat ,then remove it is ok. Very convenient and practical.





10









Auto oiling system
Automatically oiling for the guide rail and rack pinion

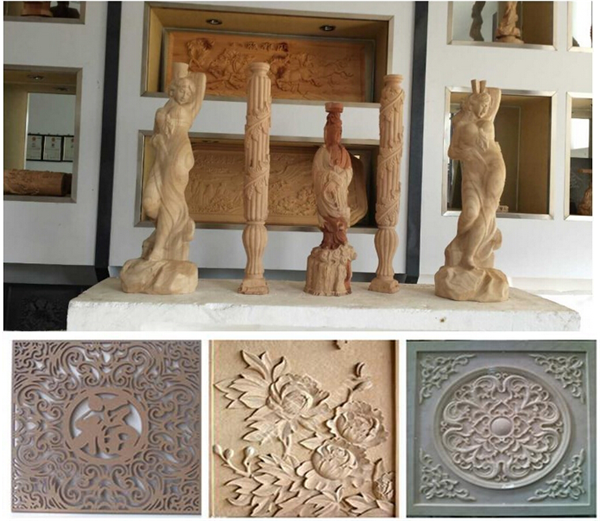

Make product display

3
5

Machine accessories

1)-Tool box

1.2

5)-software

1.6

2)-Spanner

1.3

6)-Router bits

1.7

3)-Clamp plate

1.4

7)-PCI card and data wire

50

4)-Collets

1.5

8)-U FLASH DISK

1.9

Packing and shipping

2.0
