4axis CNC BRIDGE CUTTING MACHINE

Short Description:

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

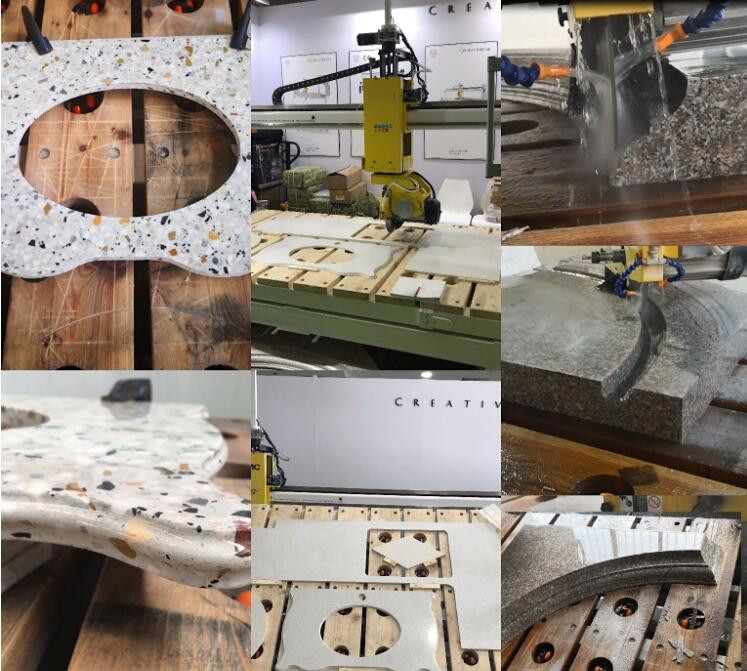

Machine picture

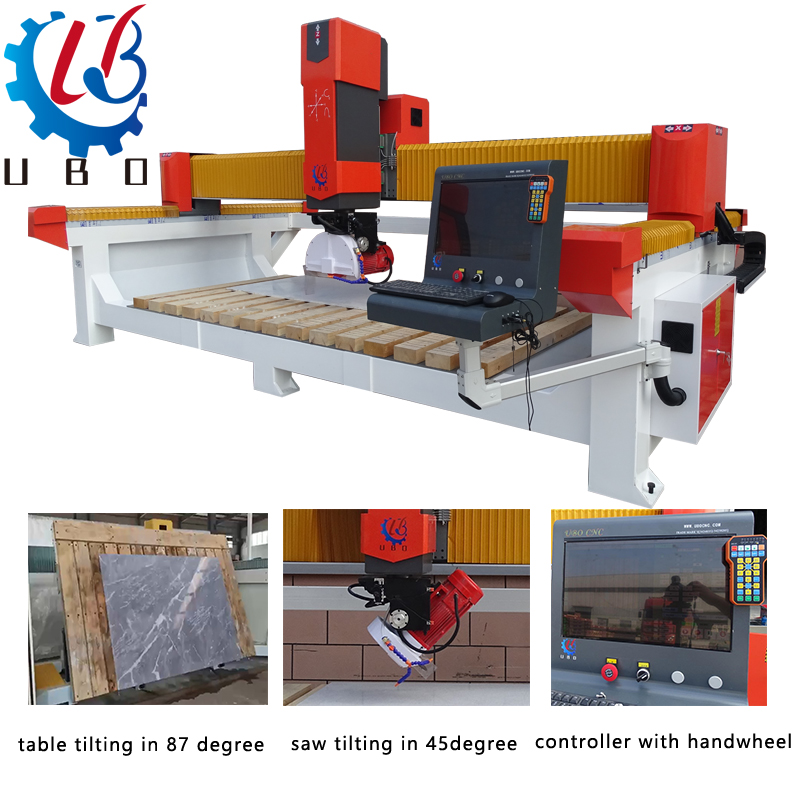

MACHINE FEATURE

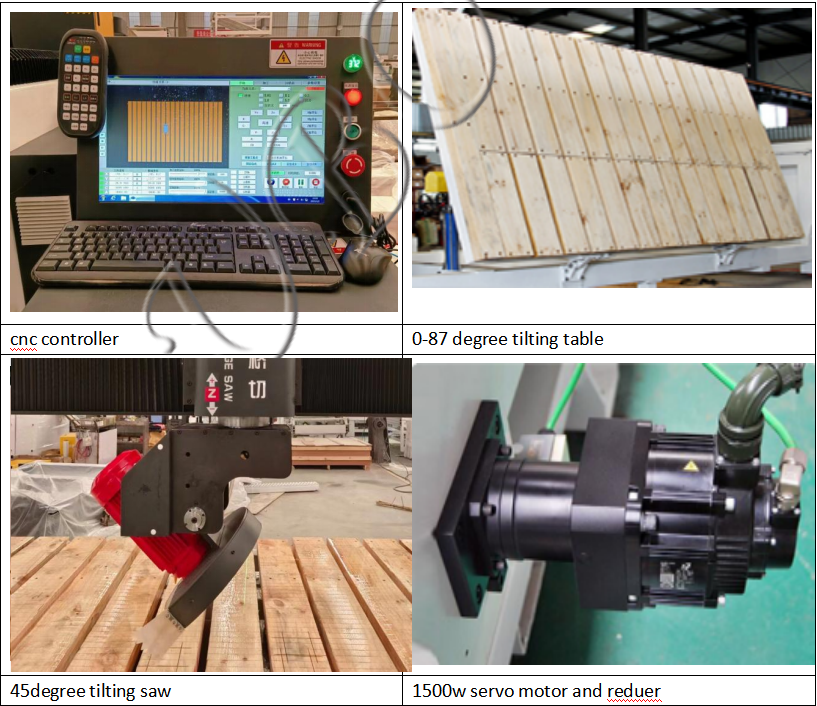

1.Powerful 15kw spindle,high precision,long life time,steady working,easy to start up.

2.Huge thickness square pipe structure ,well welded, no distortion for whole structure high precision ,and long life time.

3.Cnc controller system with USB interface,working without connecting with computer during working and easy to control.

4.All axis with dustproof design and automatic oiling system.

5.Adopt high speed powerful servo motor and drivers,and two motors for Y axis.max speed is 55mm/min.

6.Tilting table max in 0-87degree ,can help loading the stone easily.

MACHINE PARAMETERS

Items		Standard
Model No.		US-B3220
Machine body		Thickness tube welding structure
Working area(mm)	X	3200
	Y	2000
	Z	500
Structure	Table size	2250*4200
	table	Wood surface table
Transmission system	X	Taiwan HIWIN square guide rail ,WHM Rack driving
	Y	Taiwan HIWIN square guide rail ,WHM Rack driving
	Z	Taiwan HIWIN square guide rail ,TWHM Rack driving
Spindle	Power	Powerful 15kw air-cooling spindle
	Rotating Speed	3000rpm
	Cooling Type	air- cooling/pump
B Axis Rotation	0-45 degree chamfer （automatic）
A Axis Stroke	360 Rotation （automatic）
X Axis Cutting Speed	1-8000mm/min
Y Axis Cutting Speed	1-8000mm/min
Z Axis Cutting Speed	1-1000mm/min
A Axis Rotating Speed	0-7r/min
Cutting Thickness	Max 150mm
About drive systems	X	Powerful 1500W servo motor and driver+Shimpo reducer
	Y	powerful double 1500W servo motor and driver+Shimpo reducer
	Z	Powerful 1500W servo motor and driver+Shimpo reducer
	A	Powerful 750W servo motor and driver+Shimpo reducer
Control System	4.5axis Control system
Data reading mode	line by line
Compatible file format	G code /PLT/DXF/ENG
Working Voltage	3 phase AC380V/50/60Hz,
Precision	0.1mm
speed	5500mm/min
XYZ Positioning Accuracy (MM)	<0.1
Repetitive Positioning Accuracy(MM)	<0.1
Gantry made of	Thickness Steel tube 10mm
oil-inject lubrication system	Auto Oil system
Power off memory	Function of re-carving after break point and power failure
Maintenence tools	Tool Box Available
Maintenance	Service can be supplied on line
Guarantee / Warranty	36 MONTHS
Tech Support	Available	- Online / Phone
Damaged / Spoil spare part support	Available
Dimension	530032502600mm
weight	2800kg
Delivery Time	15-20 WORKING DAYS
