Auto Tool Changer 5 axis cnc wood router foam mold marking 5th ATC cnc machine

Short Description:

UW-A1212-25A Series 5axis ATC CNC ATC is a great machine with totally five axis. Heavy duty body structure with double table moving ,much more stable. Routing is driven by Syntec industrial CNC controller with an easy to use system interface. You can processing on sample ,then fixed the materials on another table ,so that save time to improve the efficient.

Send email to us

Product Detail

Product Tags

Feature Of Machine

1) The machines’body is strong, rigid, high precision, reliable and durable.

2) Imported high precision ball screw, smooth movement, to ensure that the machine tools high-precision.

3) High quality imported linear guide HIWIN/PMI has much longer life 10 times of life-time than round guide; It is stable and hard to distort.

4) double moving table, more table and high efficient working.

5) High performance driven motor to ensure that the machines high speed and accuracy.

6) The Syntec control system is a very popular control system with high quality.

7) Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.

Application

Wood furniture industry:

Doors, Cabinets, Tables, Chairs, Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards, and so on.

Advertising industry:

Signage, Logo, Badges, Display board, Meeting signboard, Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

Application Industry:

Mold industry: various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.

Instrument industry: 3-d surface engraving and shape cutting of large-scale instruments.

Others:

Relief sculpture and 3D engraving and cylindrical object.

Main Configuration

item	value
Model	UW-A1212-25A
Range of Spindle Speed(r.p.m)	1rpm - 24000rpm
Positioning Accuracy (mm)	0.01mm
No. of Spindles	Single
Working Table Size(mm)	12001200 2sets
Machine Type	CNC
Repeatability (X/Y/Z) (mm)	0.03mm
Certification	CE
Key Selling Points	Easy to Operate
Marketing Type	Hot Product 2021
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Speed	Max travelling speed : 40000mm/min Max working speed : 20000mm/min
Color	Customer Needing
Spindle	HQD/HSD/ Italy Hiteco 5axis spindle
Control system	Syntec controller
X, Y transmission	Germany WMH HERION Rack and gear
Z transmission	Taiwan TBI Ballscrew
Driving Syestm	Syntec
XYAC axis	Syntec YASKAWA servo motor
Inverter	Fuling
Reducer	Japan Shimpo reducer
Motion positioning accuracy	±0.05mm
Repeated positioning accuracy	±0.02mm
Weight	3000kg

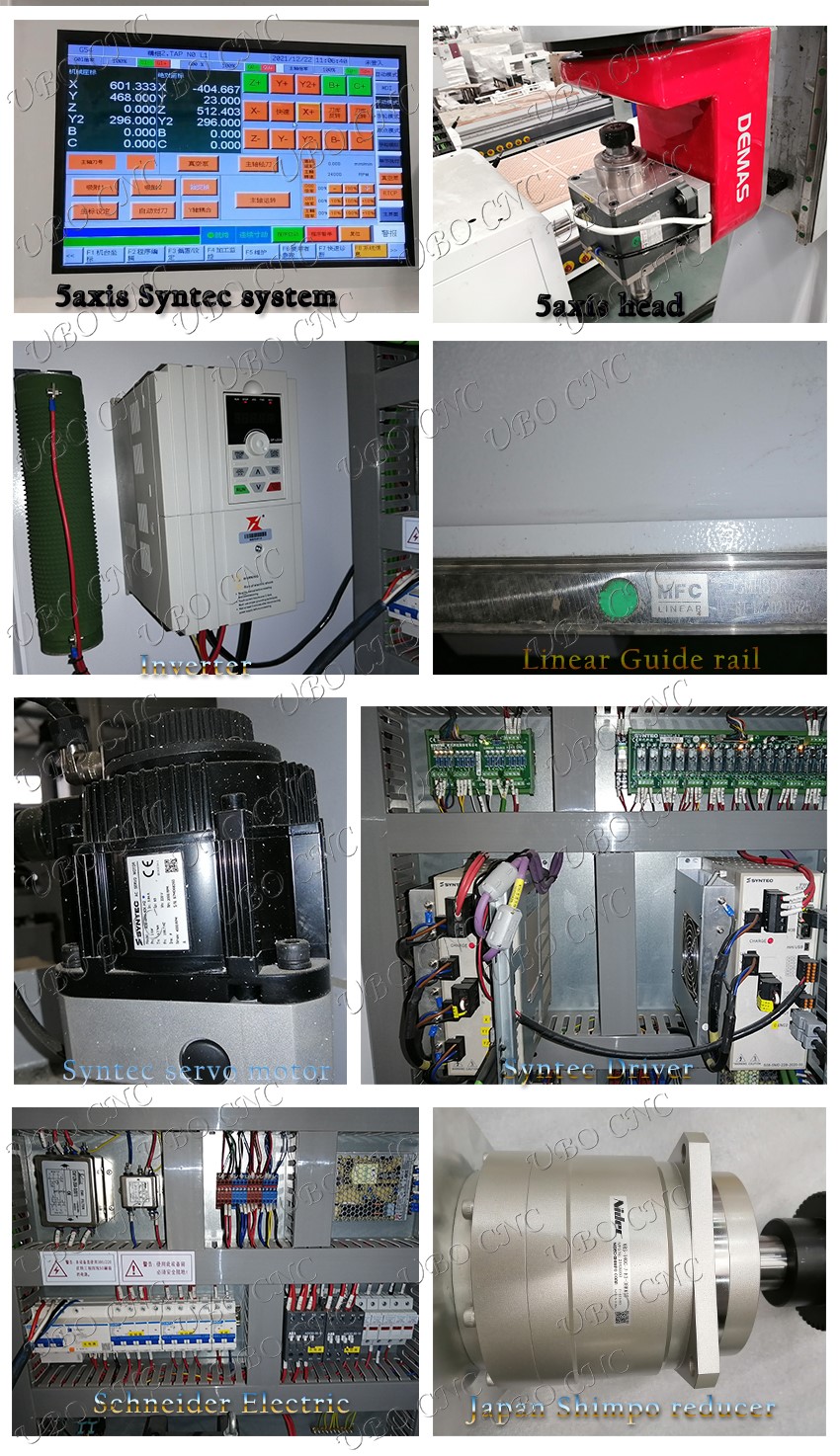

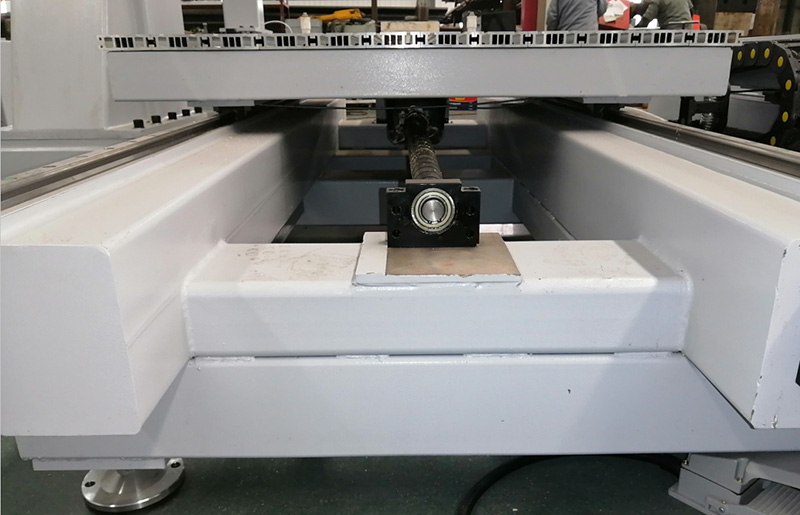

Main Parts

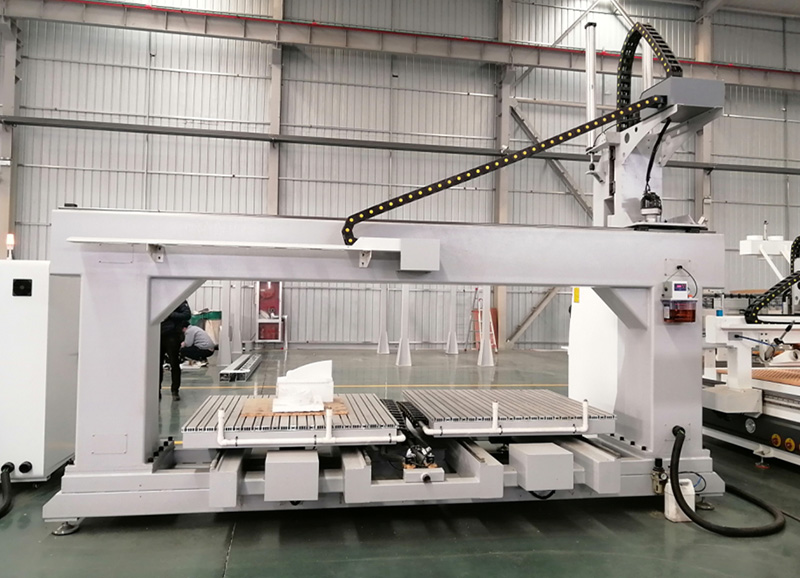

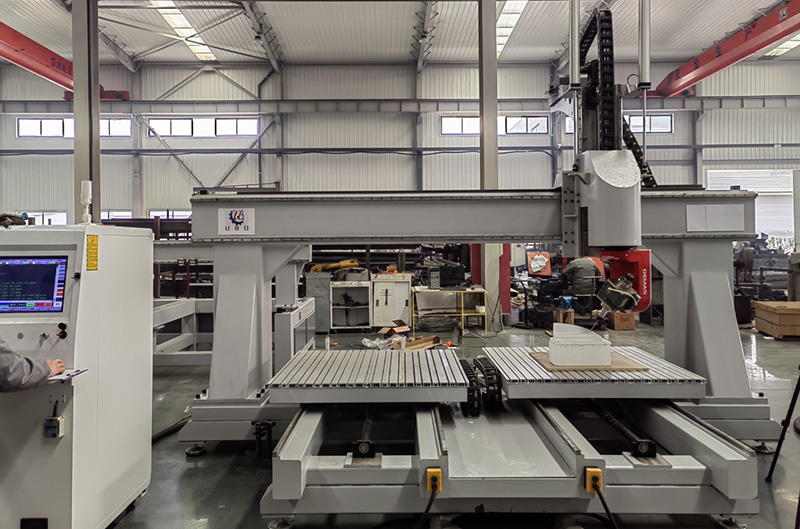

Machine Overview

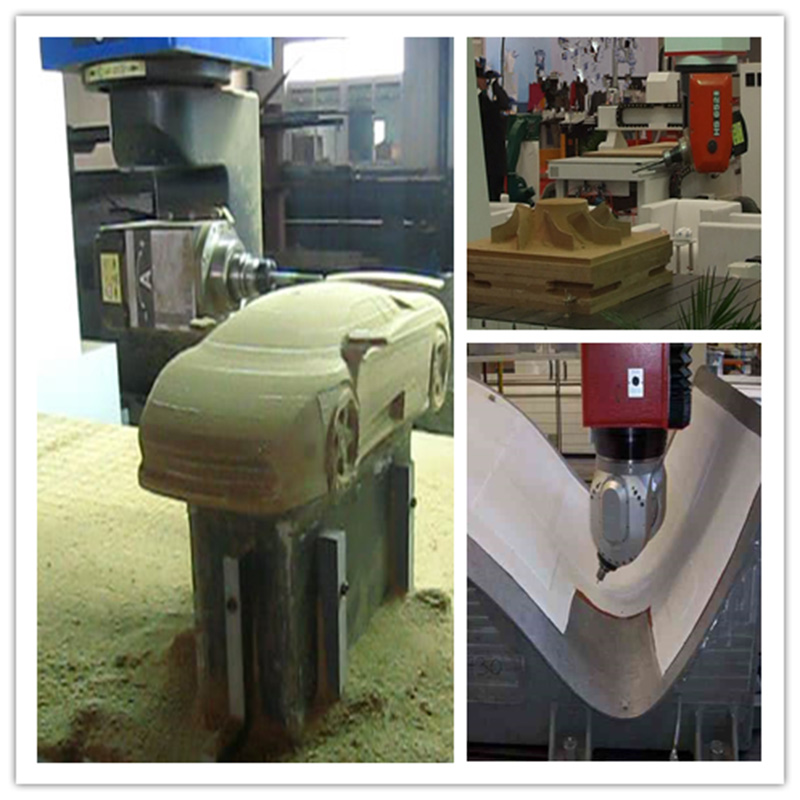

Samples

Packing and shipping

Our service

1.Our company specializes in CNC equipment production more than 10 years with rich experience.

2.Our company is a manufacturer, not a trader. have high quality with competitive price.

3.We can provide engineer for overseas service .

4.If there are any problems in the process of using the equipment, you can ask us at any time, and we will try our best to help you solve them.

5.24months warranty and whole life service ,during warranty can provide parts for free.

FAQ

Q1. What's your MOQ? What's your delivery term?

A: Our MOQ is 1 set machine, we usually require 10-15 days for manufacturing, 2days for testing well and 1 day for packaging. The exact time will be depended on your order quantity and customized level.

Q2.Whats your warranty time ? What you can supply to us after we bought your machine?

A: We give customer 2 year quality warranty. if you have any question, we will give permanent technic support and spare parts supplying.

Q3. This is the first time I use this kind of machine, is it easy to operate?

A: There are english manual or teaching video that show how to use machine. If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Q4. If I do not find the type what I need,what I should do?

A: We can produce customized products according to your drawing or samples.

Q5.How do we do the shipment?

A: We can help you booking the ship and shipping to your port directly, or we help you search the ship,then you talk with shipping company directly.
