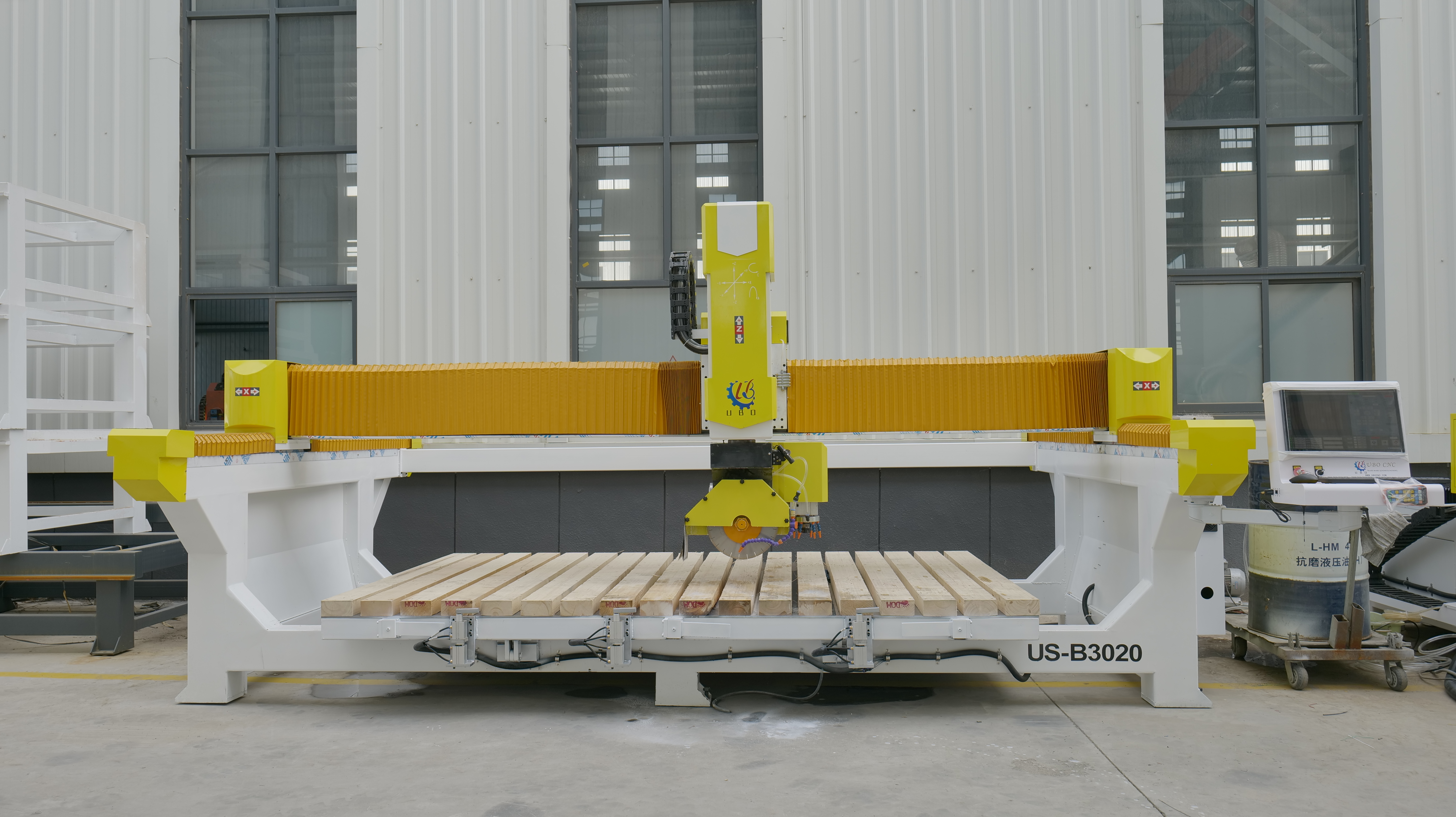

UBO CNC bridge saw cutting machine
- MACHINE PARAMETERS:
| Items | Standard | |
| Model No. | US-B3020 | |
| Machine body | Thickness tube welding structure | |
| Working area(mm) | X | 3000 |
| Y | 2000 | |
| Z | 500 | |
| Structure | Table size | 2250*4200 |
| table | Wood surface table | |
| Transmission system | X | Taiwan HIWIN square guide rail ,WHM Rack driving |
| Y | Taiwan HIWIN square guide rail ,WHM Rack driving | |
| Z | Taiwan HIWIN square guide rail ,TWHM Rack driving | |
| Motor and Spindle | Power | Powerful 15kw air-cooling spindle ,5.5kw water cooling spindle |
| Rotating Speed | 3000rpm -24000rpm | |
| Cooling Type | air- cooling/water pump | |
| B Axis Rotation | 0-45 degree chamfer （automatic） | |
| A Axis Stroke | 360 Rotation （automatic） | |
| X Axis Cutting Speed | 1-8000mm/min | |
| Y Axis Cutting Speed | 1-8000mm/min | |
| Z Axis Cutting Speed | 1-1000mm/min | |
| A Axis Rotating Speed | 0-7r/min | |
| Cutting Thickness | Max 150mm | |

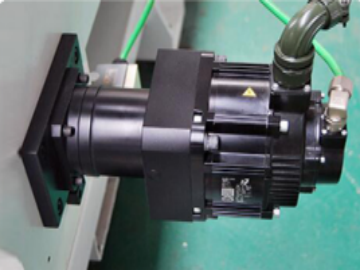

| About drive systems | X | Powerful 1500W servo motor and driver+Shimpo reducer |
| Y | powerful double 1500W servo motor and driver+Shimpo reducer | |
| Z | Powerful 1500W servo motor and driver+Shimpo reducer | |
| A | Powerful 750W servo motor and driver+Shimpo reducer | |

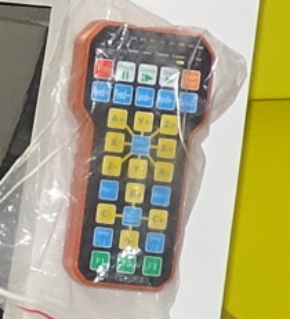

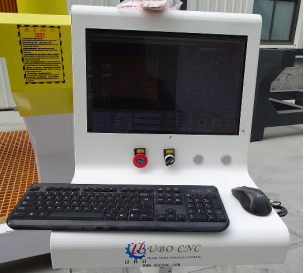

| Control System | 4axis Control system with wireless remote | |
| Data reading mode | line by line | |
| Compatible file format | G code /PLT/DXF/ENG | |
| Working Voltage | 3 phase AC220V/60Hz, | |
| Precision | 0.1mm | |
| speed | 5500mm/min | |
| XYZ Positioning Accuracy (MM) | <0.1 | |
| Repetitive Positioning Accuracy(MM) | <0.1 | |
| Gantry made of | Thickness Steel tube 10mm | |
| oil-inject lubrication system | Auto Oil system | |
| Power off memory | Function of re-carving after break point and power failure | |
| Maintenence tools | Tool Box Available | |
| Maintenance | Service can be supplied on line | |
| Guarantee / Warranty | 36 MONTHS | |
| Tech Support | Available | - Online / Phone |
| Damaged / Spoil spare part support | Available | |
| Dimension | 5600*3250*2600mm | |
| weight | 3500kg | |
| Delivery Time | 15-20 WORKING DAYS | |
- MAIN CONFIGURATIONS:
 |
 |

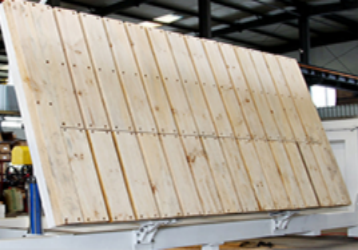

| cnc controller with remotoe | 0-87 degree tilting table |
 |
 |

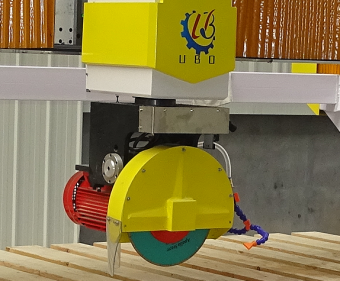

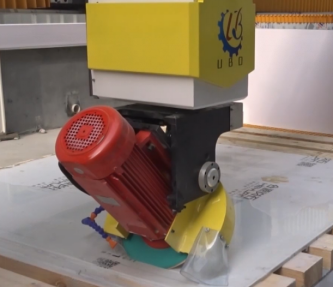

| 45degree tilting saw | powerful servo motor and Japan shimpo reduer |
 |
 |

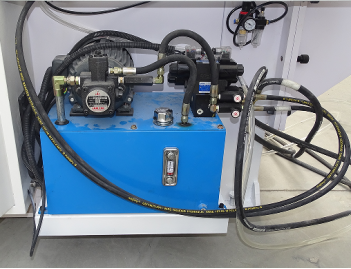

| Vertical cutting | Hydraulic system |
 |
 |

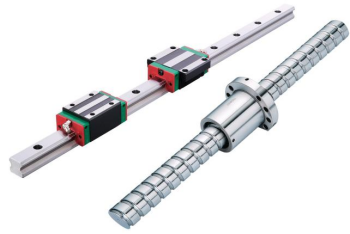

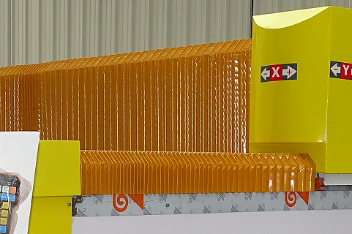

| All axis dustproof design | HIWIN 30 square guide rail and TBI ball screw |
 |
 |

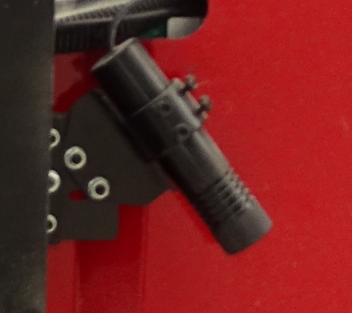

| Red Laser light | Wireless remote hand wheel |
V.Application:
VI.Machine Functio sample:
|
Straight cut at any angle
|
Auto chamfer |
Multiple cut |
Orthogonal cut |
|
Polygon cut
|
Circle cut
|
Handle remote wheel
|
Tilting table |
|
Arc mosaic |
Groove |
Water retaining edge |
Background wall lines |
VII.PACKING:
|
|
IX.WARRANTY AND SERVICE
1. Engineers availbal to service machinery overseas.
2. 3 year guarantee for whole machine.
3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 24 hours to solve it.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine,we will provide the best price for you.
6. Friendly English version manual and operation video CD disk.
