High Quality for Automatic Edge Banding Machinery - Customized marble stone kitchen cnc router machining center 3000×1500 ATC kitchen industry – UBO Detail:
1. thickness welding body structure,Aging quenching treatment effectively prevents deformation of the bed.
2. With advanced UBOCNC Germany SINAMICS/Taiwan syntec/Weihong control system and all pattern operation, the machine can be operated without professional operators.
3. Import Taiwan powerful Delta servo motor and driver, the machine can work in much more efficient.
4. Special 3axis dust-proof system,protect guides and higher efficiency.
5. The large size of the table is easy to place a plurality of processing stations
6. auto position device for save time to improve the efficient.
1. thickness welding body structure,Aging quenching treatment effectively prevents deformation of the bed.
2. With advanced UBOCNC Germany SINAMICS/Taiwan syntec/Weihong control system and all pattern operation, the machine can be operated without professional operators.
3. Import Taiwan powerful Delta servo motor and driver, the machine can work in much more efficient.
4. Special 3axis dust-proof system,protect guides and higher efficiency.
5. The large size of the table is easy to place a plurality of processing stations
6. auto position device for save time to improve the efficient.
Applicable industry: widely used in quartz cabinet countertops processing industry, large stone panel engraving industry,craft processing and building material industry.
Applicable material: stone,artificial marble,glass,brass,aluminum etc. Soft metal plate

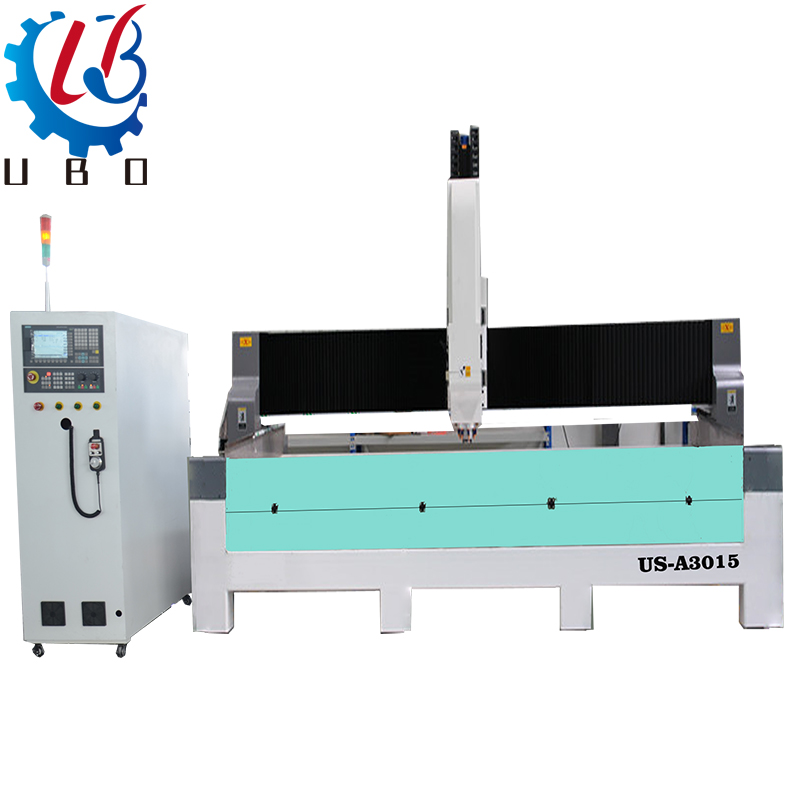

| Model | US-A3015 |
| X,Y,Z working area | 3000*1500*500 mm |
| Lathe Bed | Thick steel weld |
| Table | Steel board+Aluminum board |
| XYZ Guide Rail | 30mm Taiwan Square Rail |
| X Y Transmission | Imported Rack Gears |
| Z Transmission | Imported Ball Screw |
| Spindle | 5.5/7.5kw Servo Customized Spindle |
| Motor | Taiwan Delta servo motor |
| Drive | Taiwan Delta Servo driver |
| Way of fixing Workpiece | Vacuum sucker |
| vacuum pump | 5.5kw water-cooling |
| Control system | Germany SINAMICS/Taiwan syntec/Weihong |
| Command languages | G code |
| Software compatibility | Artcam CAD CAM software |
| Working voltage | AC380V/3phase,50HZ |
| Weight | 3800KGS |
| Color | Customized |
 |
 |

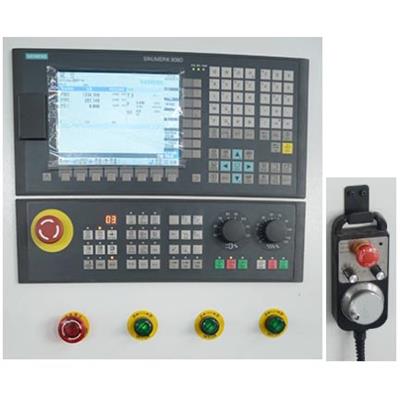

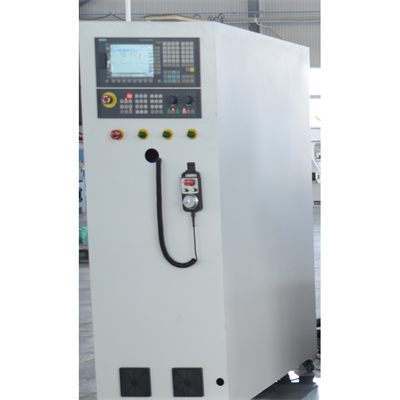

| Germany SINAMICS + remoter | Water cooling system |
 |
 |

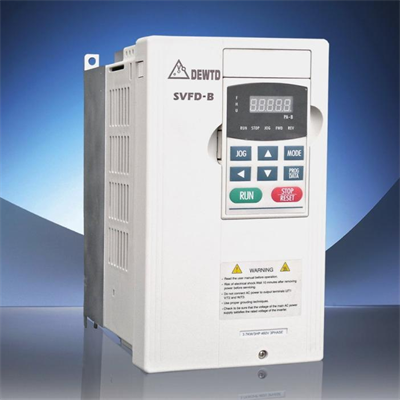

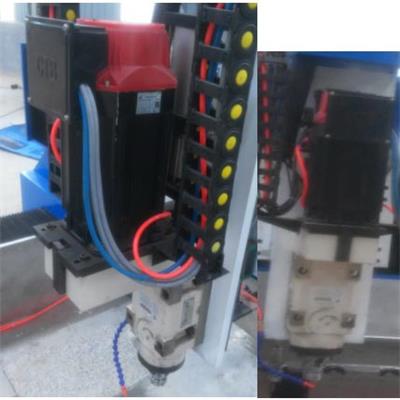

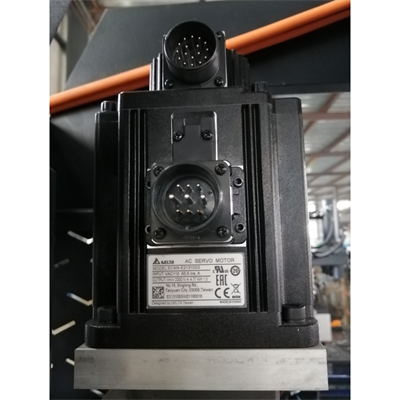

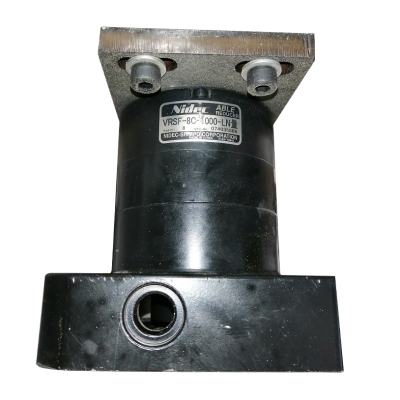

| Taiwan Delta powerfully servo motor and driver | Japan shimpo reducer |
 |
 |
| Beijing CTB powerful Mechanical spindle | Taiwan Delta driver |
 |
 |

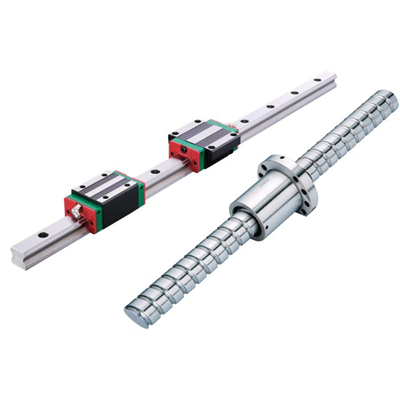

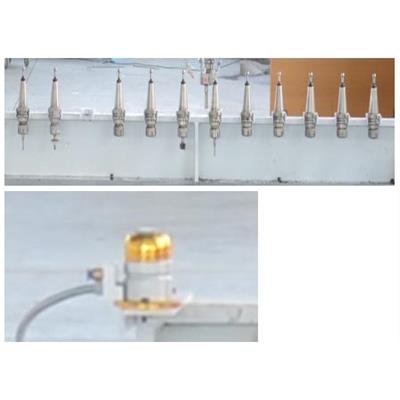

| Tool magazine and tool sensor | HIWIN 30 guide rail and TBI ball screw |
 |
 |

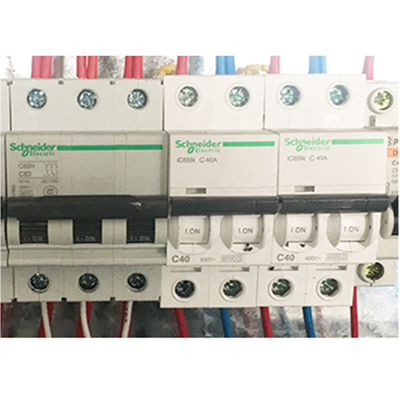

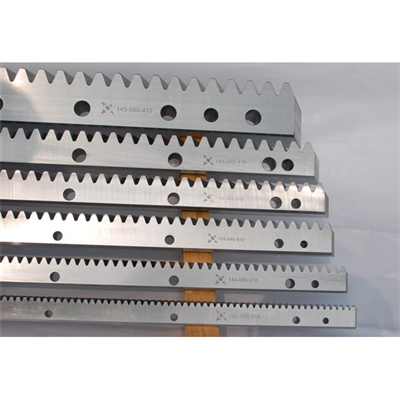

| Schneider Electric Devices | Germany ATLANTA rack |
 |
 |

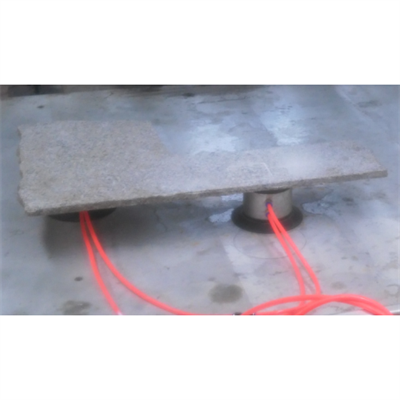

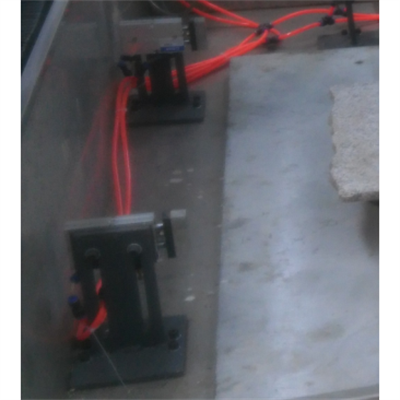

| Auto position device | Vacuum device |
 |
 |

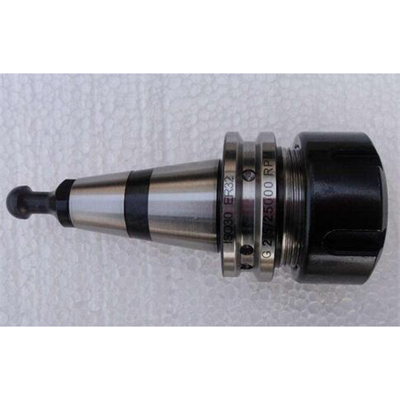

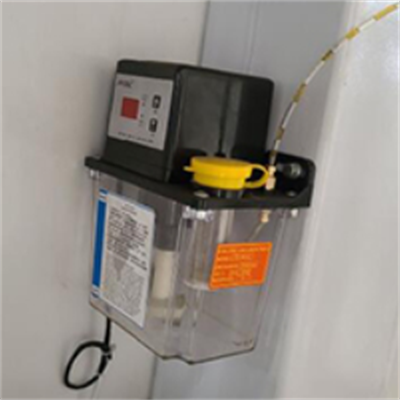

| Tool holder | Auto oiling system |
 |
 |

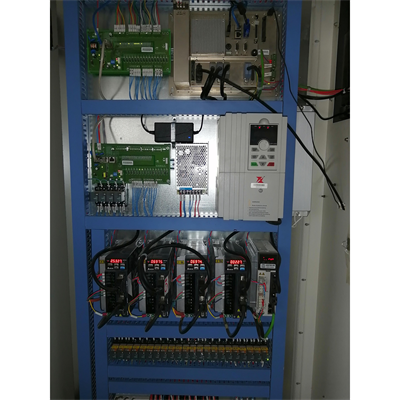

| Control box and inside | |
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 20-30 working days after payment.
Q1: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q2: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q3: How long is the delivery time?
Generally 15 ~ 25 working days.
Q4: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q6: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
