Cnc surfboard shaping machine cnc router milling drilling machine for surboard maker

Short Description:

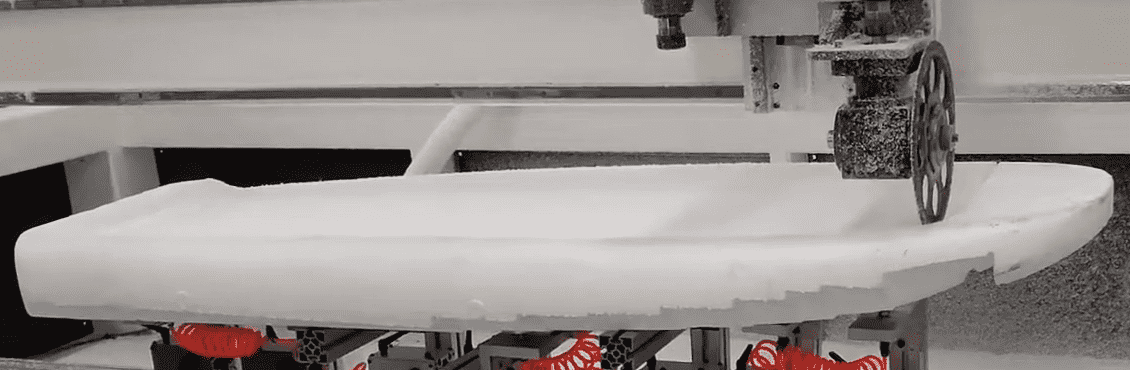

Cnc surfboard shaping machine Series is a device specially used to manufacture surfboard shapes. According to the material characteristics of the surfboard, it uses a vacuum adsorption device to fix the material. The machine adopts pneumatic tool change method, 2 air-cooled spindles, one uses the tool to make holes, the other is responsible for the shape of the saw blade. The visual control panel can track the path in real time and check the progress.

Send email to us

Product Detail

Product Tags

Feature Of Machine

1. The body structure is welded with large square tube and quenched, which is more stable and will not be deformed for a long time.

2. Taiwan imported HIWIN guide rail and the German WMH rack have high precision and stable operation.

3. Automatic cylinder positioning, high precision; automatic cylinder fixing, more efficient.

4. Air-cooled spindle with automatic tool change, quick tool change, meeting multi-process processing requirements.

5. Japan YASKAWA servo motor and driver, strong power and much more precision.

6. NCstudio control system Visual control.

Application

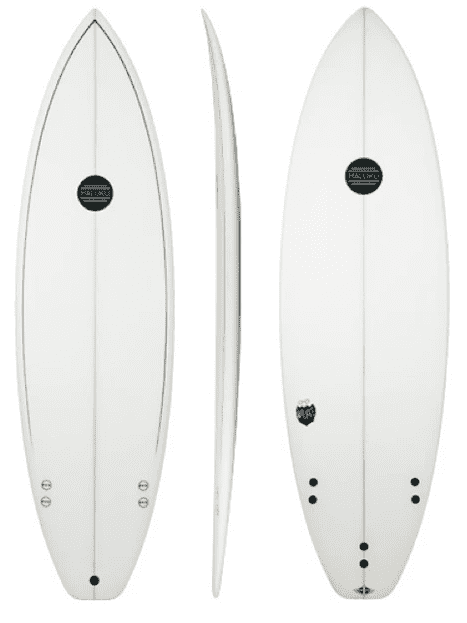

Surfboard ,Doors, Cabinets, Tables, Wave plate, fine pattern, craft sash, composite gates, cupboard doors, interior doors, headboards, and so on.

Main Configuration

Item	item	value
1	Model	UW-3015P
2	Range of Spindle Speed(r.p.m)	1rpm - 24000rpm
3	Positioning Accuracy (mm)	0.01mm
4	No. of Spindles	Single
5	Working Table Size(mm)	3000*1500
6	Machine Type	CNC
7	Repeatability (X/Y/Z) (mm)	0.03mm
8	Certification	CE
9	Key Selling Points	Easy to Operate
10	Marketing Type	Hot Product 2021
11	Machinery Test Report	Provided
12	Video outgoing-inspection	Provided
13	Speed	Max travelling speed : 60000mm/minMax working speed : 30000mm/min
14	Color	Customer Needing
15	Spindle	HQD/HSD/ Italy air spindle
16	Control system	DSP controller
17	X, Y transmission	Germany WMH HERION Rack and gear
18	Z transmission	Taiwan TBI Ballscrew
19	Driving Syestm	Japan YASKAWA
20	XYAC axis	Japan YASKAWA servo motor
21	Inverter	Taiwan Delta
22	Motion positioning accuracy	±0.05mm
23	Repeated positioning accuracy	±0.02mm
24	Weight	1800kg

Main parts

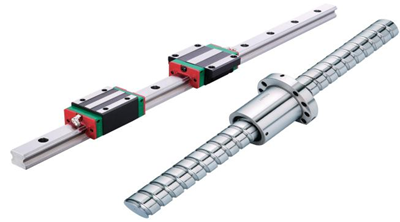

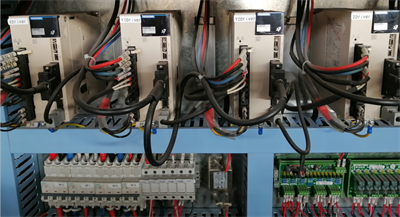

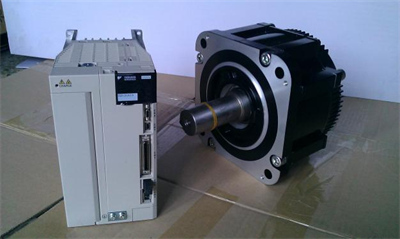

HIWIN Square guide rail and TBI ball screw.More high accuracy and running stable	Yaskawa Powerful Servo motor and driverImport fromo Japan .It not only proved powerful and also can have signal feedback.very high accuracy.

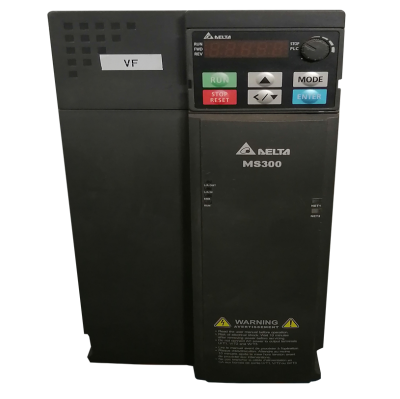

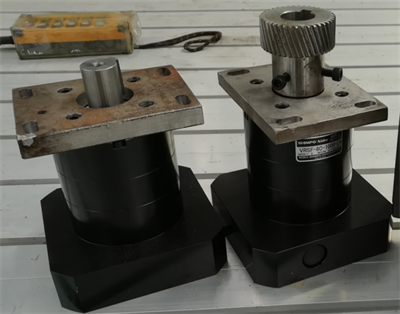

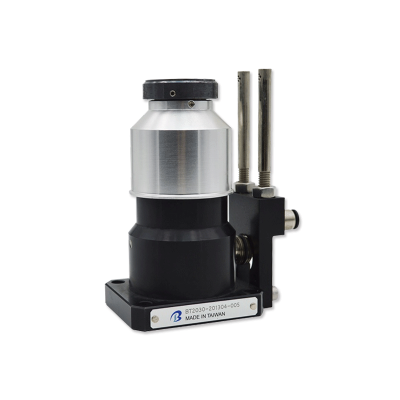

Delta inverterThe signal control is more stable, making the spindle run more smoothly	High accuracy Shimpo reducerJapan imported ,High precision and high torque. Run more smoothly

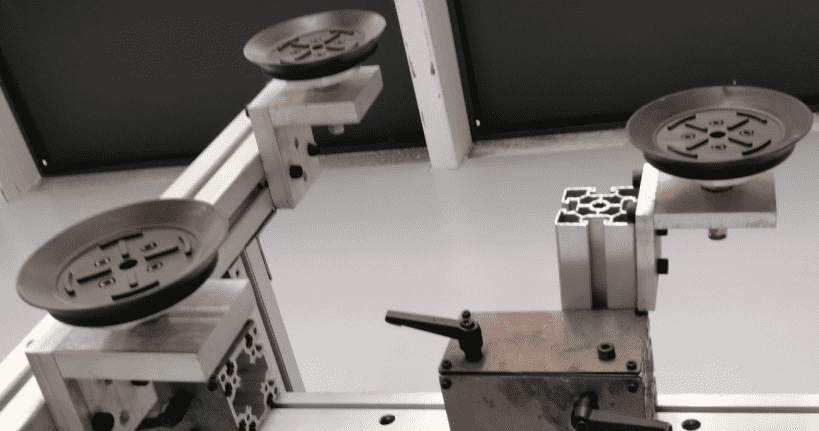

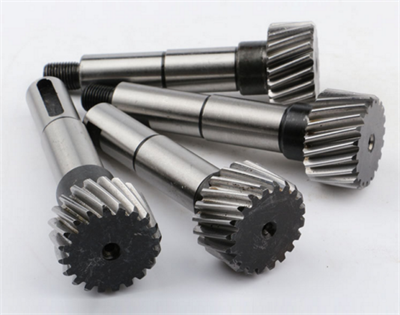

Import WMH rack pinionHigh-precision rack and pinion, running more smoothly	Vacuum adsorption device They can fixed the materials very well

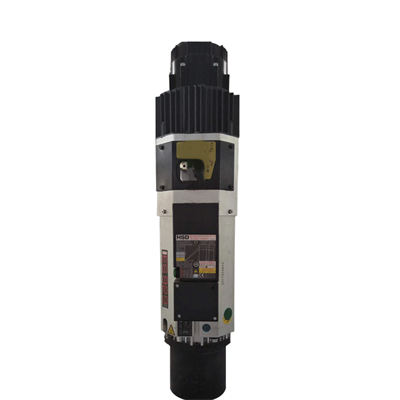

Powerful HSD 9kw ATC SpindleFamous brand import from Italy,More powerful to improve the efficient,long time life and high accuracy	Off line DSP control systemImport from Taiwan ,Stronger anti-interference ability, greater function, more stable operation

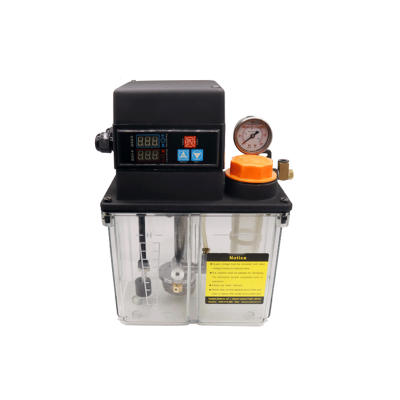

Auto oiling systemAutomatically oiling for the guide rail and rack pinion	High accuracy tool sensorAuto tool sensor ,much more accuracy than human tool sensor ,and high efficient

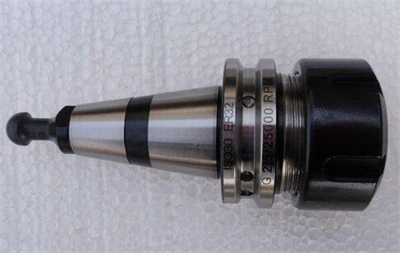

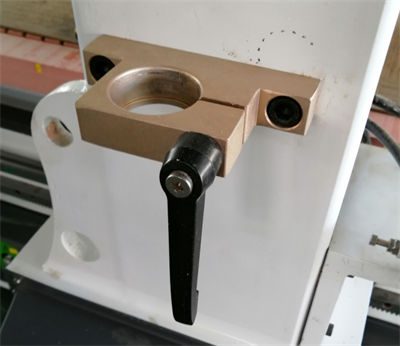

Unloading tool workpiece	Tools holder

Machine overview

Packing and shipping:

Our service

1.Our company specializes in CNC equipment production more than 10 years with rich experience.

2.Our company is a manufacturer, not a trader. have high quality with competitive price.

3.We can provide engineer for overseas service .

4.If there are any problems in the process of using the equipment, you can ask us at any time, and we will try our best to help you solve them.

5.24months warranty and whole life service ,during warranty can provide parts for free.

FAQ

Q1. What's your MOQ? What's your delivery term?

Our MOQ is 1 set machine, we usually require 10-15 days for manufacturing, 2days for testing well and 1 day for packaging. The exact time will be depended on your order quantity and customized level.

Q2. Whats your warranty time ? What you can supply to us after we bought your machine?

We give customer 2 year quality warranty. if you have any question, we will give permanent technic support and spare parts supplying.

Q3. This is the first time I use this kind of machine, is it easy to operate?

There are english manual or teaching video that show how to use machine. If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Q4. If I do not find the type what I need,what I should do?

We can produce customized products according to your drawing or samples.

Q5. How do we do the shipment?

We can help you booking the ship and shipping to your port directly, or we help you search the ship,then you talk with shipping company directly.
