1325 Cnc Router 4 Axis Cnc Machine Price Wood Carving Machine 3d Cnc Spindle Rotate Left And Right
1. It adopts well-known 9.0KW HQD spindle, which is famous brand and has many after service department all over the world. adopts air cooling spindle, no need water pump, it is very convenient to use.
2. with high-performance Japan YASKAWA servo motor, the machine can work in high precision, the servo motor runs smoothly, no vibration phenomenon even in the low speed, and it has a strong ability of overload.
3. The linear automatic tool changer system which contains 6 or 8 pieces of cutting tools and saw cuttting are controlled by CNC Syntec Control system.The tools can be changed very quickly and reliably.
4. Break point memory, continuing carving after power outage, forecasting processing time and other functions.
5. It is compatible with Type3 / Artcam / Castmate, and other CAD / CAM design software.
6. the tools magazines coming with gantry ,can save much time and improve the efficient.

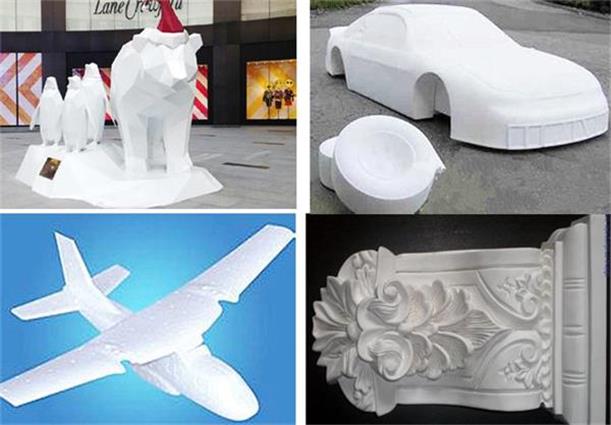

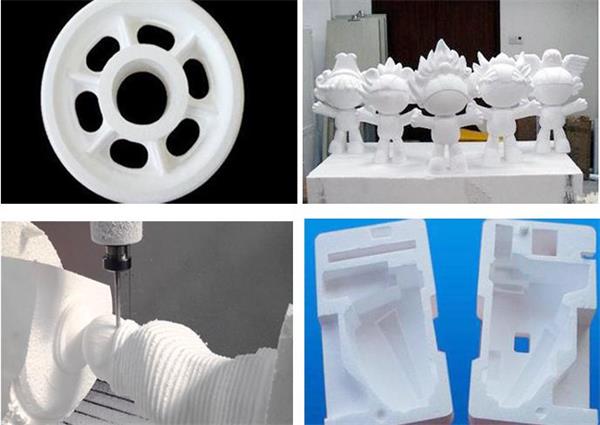

1) Foam processing of automotive stamping dies, casting of wood molds, automotive interiors, engineering plastic materials, and various non-metal processing.
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) Wood mold processing center: Casting wood mold, automotive inspection tool processing, automotive interiors, engineering plastic materials and other non-metallic processing.
|
Parameter data |
|
| Model | UW-1325Y-4A |
| X,Y Working Area | 1300*2500*350mm*180 degree |
| Z Working Area | 350mm |
| Lathe Structure | Seamless welded steel structure, better than cast iron one |
| X,Y Structure | Rack and pinion, gear drive,Taiwan 25mm square guide rails |
| Z Structure | Taiwan TBI ball screw, Taiwan 25mm square guide rails |
| Spindle | 9.0kw ATC spindle |
| Spindle Speed | 0-18000r/min, variable speed |
| Cooling Mode | Air-cooling |
| Working Mode | SERVO |
| Motor and driver | Leadshine easy servo motor and driver |
| Operating System | Syntec 6MB control system |
| Diameter of Cutter | φ3.175-φ12.7 |
| Max. Traveling Speed | 55m/min |
| Max Working Wpeed | 20m/min |
| Compatible Software | Ucancam/Type3/Artcam/Artcut etc |
| Resolution | 0.01mm |
| Command | G code (HPGL, U00, mmg, plt) |
| Working Voltage | 380V, 3PH, 50/60Hz |
1. service before sales: our sales will communicate with you to know your requirements about the cnc router specification and what kind of work you will do, then we will offer our best solution for you. So that it can confirm each customer get their real needed machine.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control, etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we will replace it for free.
8. service in long-term: we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.
